Champion Fiberglass XW Bullet Resistant Iron Pipe Size Conduit

Name: Champion Fiberglass XW Bullet Resistant Iron Pipe Size Conduit
Brand: Colonial Teltek
SKU: PVC-058303
Price: 89.99 USD
Availability: OutOfStock

SKU:PVC-058303

Champion Fiberglass XW Bullet Resistant Conduit for maximum protection in demanding environments.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Champion Fiberglass XW Bullet Resistant Iron Pipe Size Conduit is designed for the highest level of physical protection in demanding applications such as Class 1 Div 2 & Class 1 Zone 2 environments. This extra heavy wall conduit offers exceptional durability and safety with an integral bell and spigot system that ensures secure connections. Constructed using fiberglass reinforced thermosetting resin with an epoxy-based resin system, this conduit meets stringent industry standards including UL and CSA certifications. Ideal for both aboveground installations, this conduit guarantees reliable performance and long-term reliability.

Product Specifications

Application

Highest level of physical protection, Class 1 Div 2 & Class 1 Zone 2 Applications

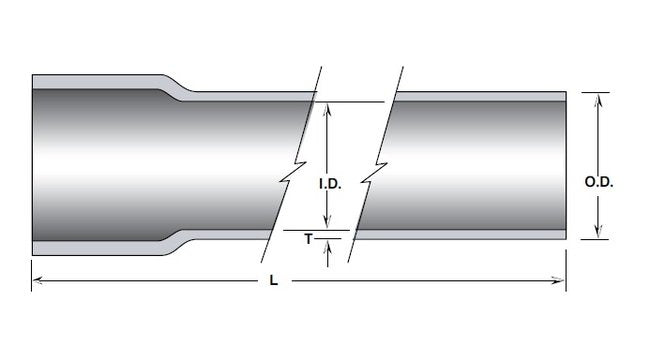

Dimesional Attributes Average Outside Diameter

2.260 in | 57 mm

Dimesional Attributes Inside Diameter Min

1.760 in | 45 mm

Dimesional Attributes Length L

20 ft | 6.1 m

Dimesional Attributes Nominal Size

1 1/2 in | 38 mm

Dimesional Attributes Nominal Wall Thickness

0.25 in | 6 mm

Dimesional Attributes Outside Diameter Tolerance

-0.036 in | 0.056 in | -0.9 mm | 1.4 mm

Features

Most Commonly used.

General Information

Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications End Type

Bell End

Specifications Industry Standardscertifications

Underwriters Laboratories (UL), Canadian Standards Association (CSA)

Specifications Type

Iron Pipe Size (IPS) Aboveground Straight Conduit with Straight Socket

Specifications Wall Thickness

Extra Heavy Wall, Bullet Resistant

Specifications Weight

1.18 lb/ft | 1.76 kg/m
