Chariot Electric Personnel Transporter
Chariot Electric Personnel Transporter
SKU:CHA-9da187
Efficiently move personnel with the Chariot Electric Personnel Transporter. Fast, safe, and maneuverable for indoor/outdoor use.
Regular price
$4,499.99
Regular price
Sale price
$4,499.99
Unit price
per
Initiate Order
Chariot Electric Personnel Transporter
$4,499.99
Quantity: 1
Claim Your Seller Account
Chariot Electric Personnel Transporter
$4,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

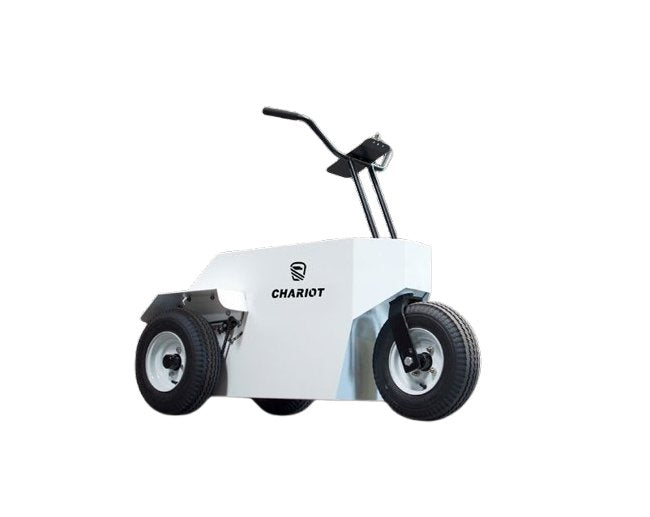

The Chariot Electric Personnel Transporter is a reliable solution for efficiently moving key personnel around facilities. With its pure electric power, the Chariot ensures quiet and quick operation. Featuring a narrow width to fit through standard doorways, it offers enhanced maneuverability. The vehicle boasts a top speed of 9 mph, making it ideal for covering distances swiftly. Safety is paramount with its low center of gravity and stand-up operation, providing increased visibility. Equipped with a robust power train, heavy-duty chassis, and various accessories, the Chariot is designed to streamline transportation needs while meeting institutional procurement standards.
Product Specifications
Body Accessories
Shin GuardHandlebar SteeringComposite Deck Board With High Density Polyethylene Overlay
Body Body
14-Gauge Powder Coated Structural Steel Smooth Plate Body
Body Lighting
Optional Strobe Light
Body Passenger Capacity
One
Body Seating
Stand Up Operation
Chassis Brakes
4.5 in. Mechanical Drum on Drive WheelAutomatically Engaged Upon Dismount
Chassis Frame
Heavy-Duty Welded Steel Chassis
Chassis Steering
Handle Bar to Front Fork
Chassis Tires
4.80" x 8", Pneumatic, 6 ply rated, load range C

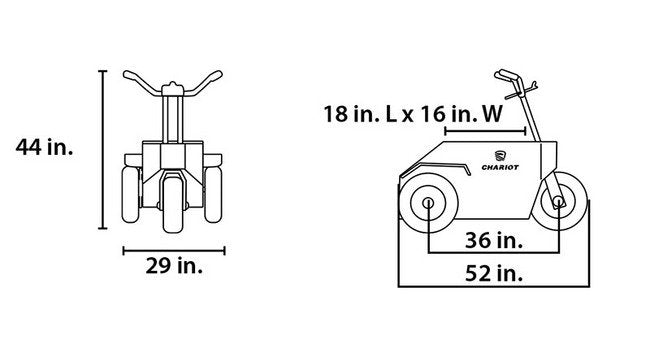

Dimensions Ground Clearance
2.5 in
Dimensions Load Bed Height
24 in
Dimensions Step Height
5.25 in
Note
Features, options, specifications, color availability and model designation are subject to change without notice. Some vehicles are pictured with options that may be available at extra cost or may not be available on some models. Ask your dealer about the availability of options and verify that the vehicle you order includes the equipment you require.All specifications are subject to change without notice.
Performance Curb To Curb Turning Radius
79 in
Performance Intersecting Aisle Turning Radius
41 in
Performance Maximum Forward Speed
9 mph
Performance Range
0 to 35 mil
Performance Voltage
12 V
Power Train Batteries
Two, 6 Volt, 232 Amp Hour, 122 Minute, Deep Cycle
Power Train Charger
Built-In, Micro-processor Controlled, Fully Sealed, 120 VAC
Power Train Controller Type
3 Speed, Slide-Bar Switch
Power Train Directional Control
Optional Reverse
Power Train Drive Unitdifferential
Heavy-Duty Chain to Drive Wheel, 7.4:1 Final Drive Ratio
Power Train Motor
12-Volt DC, Series Wound, Solid Copper Windings, Class H insulation
Power Train Power At 750 Revolutions Per Minute Rpm Speed
0.7 hp
Technical Specs Brands
Columbia
Weight And Capacity Rated Capacity
400 lb
Weight And Capacity Vehicle Weight
366 lb
