Chassis Mount Circuit Board Support Screw
Chassis Mount Circuit Board Support Screw
SKU:01C-310bda
Securely mount circuit boards with our 75 & 75M4 Series Chassis Mount Screw. Designed for stability and durability in diverse applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chassis Mount Circuit Board Support Screw
$29.99
Quantity: 1
Claim Your Seller Account
Chassis Mount Circuit Board Support Screw
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

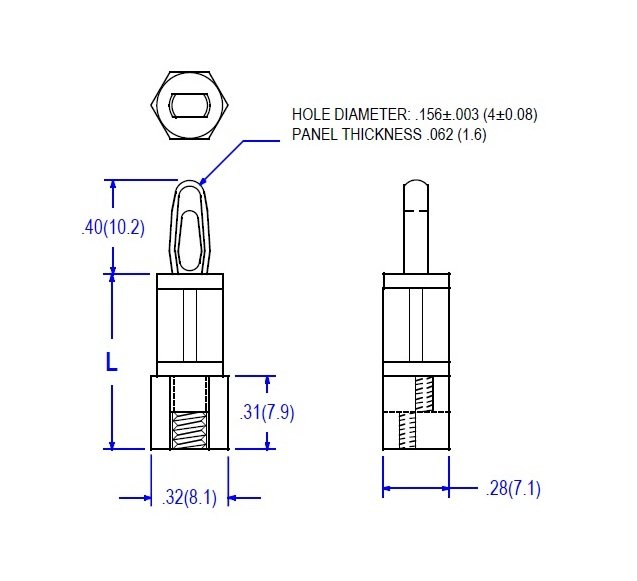

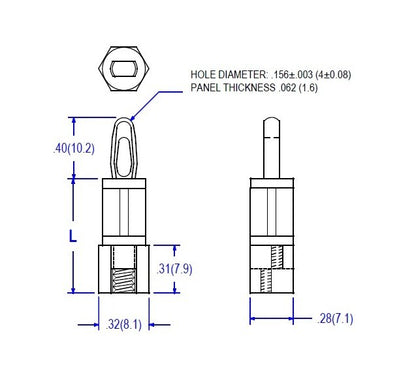

The 75 & 75M4 Series Chassis Mount Circuit Board Support Screw is designed for secure fastening of circuit boards in diverse applications. Featuring a Threaded Female #6-32 or M4 thread, this mount offers precise chassis installation with a .156 PCB Mounting Hole, ensuring stability. Each pack contains 1000 units made of Nylon 66 UL94V-2 material, with the option to upgrade to UL94V-0 (indicated by 'X' at the end of the part#). Compliant with RoHS standards, ASTM D 4066, and PA111, this mount withstands temperatures from -40 to 185F (-40 to 85C), ensuring reliable performance in varied environments.
Product Specifications
Specifications Dim L
.875 (22.2) inches (mm)
Specifications Thread Size
6-32
