Chassis Mount Circuit Board Support Screw
Chassis Mount Circuit Board Support Screw
SKU:01C-e1935f
Securely mount circuit boards with our Chassis Mount Support Screws for reliable performance in diverse applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chassis Mount Circuit Board Support Screw
$29.99
Quantity: 1
Claim Your Seller Account
Chassis Mount Circuit Board Support Screw
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

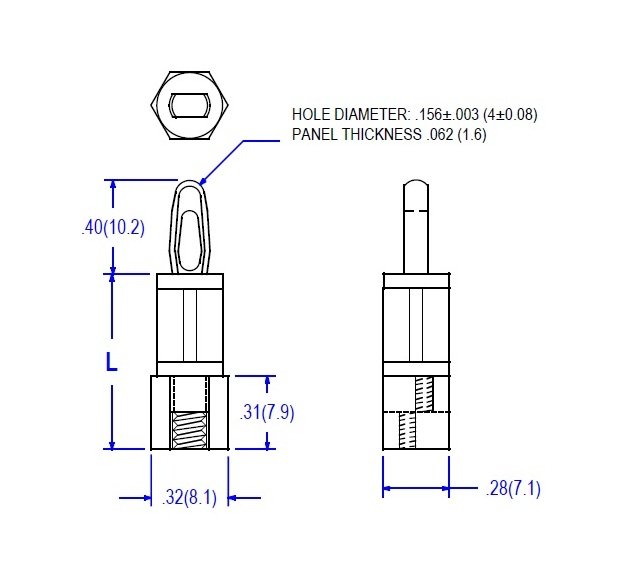

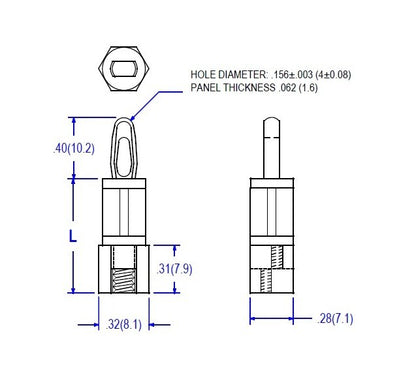

The 75 & 75M4 Series Chassis Mount Circuit Board Support Screw is designed for secure mounting of circuit boards with .156 PCB mounting holes. These threaded female screws feature M4 or #6-32 thread sizes, ensuring a reliable fit. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports meet ASTM D4066 and PA111 standards. With a RoHS-compliant construction, they offer a temperature range of -40 to 185F (-40 to 85C), ensuring durability in various environments.
Product Specifications
Specifications Dim L
.375 (9.5) inches (mm)
Specifications Thread Size
M-4
