Chassis Mount Circuit Board Support Screw (M4/6-32) - 75 & 75M4 Series
Chassis Mount Circuit Board Support Screw (M4/6-32) - 75 & 75M4 Series
SKU:01C-57382c
Securely mount circuit boards with the Chassis Mount Support Screw - 75 & 75M4 Series. RoHS compliant, durable Nylon build, and ASTM certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chassis Mount Circuit Board Support Screw (M4/6-32) - 75 & 75M4 Series
$29.99
Quantity: 1
Claim Your Seller Account
Chassis Mount Circuit Board Support Screw (M4/6-32) - 75 & 75M4 Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

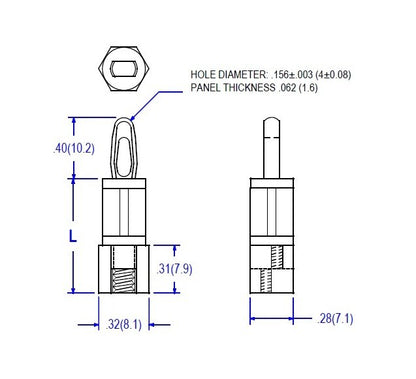

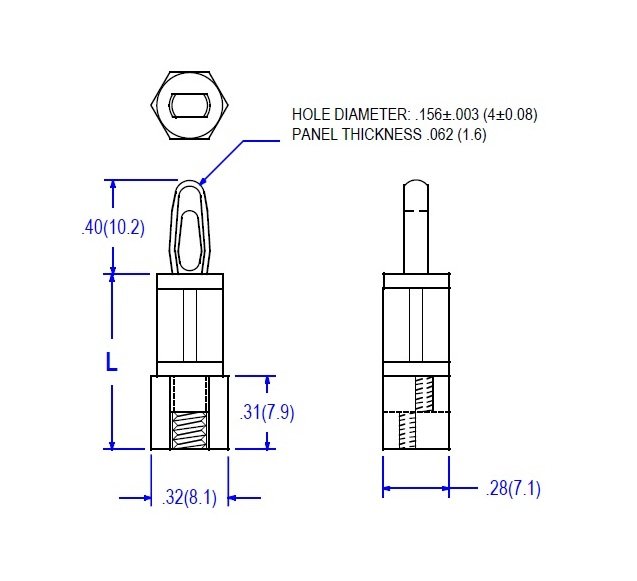

The 75 & 75M4 Series Chassis Mount Circuit Board Support Screw is designed for secure fastening with a Threaded Female M4/6-32 thread. Featuring a .156 PCB Mounting Hole and Snap Fit design, these supports are made of Nylon 66 UL94V-2 material, ensuring durability and RoHS compliance. With a temperature range of -40 to 185F (-40 to 85C), these screws offer reliable performance in various settings. ASTM D 4066 and PA111 certified, these supports meet stringent industry standards for quality and reliability.
Product Specifications
Specifications Dim L
.500 (12.7) inches (mm)
Specifications Thread Size
M4
