Chassis Mount Circuit Board Support Screws - 75 & 75M4 Series
Chassis Mount Circuit Board Support Screws - 75 & 75M4 Series
SKU:01C-e76630
Versatile Chassis Mount Circuit Board Support Screws for .156 PCB Holes, 6-32 or M4 Threads, UL94V-2 Nylon, RoHS Compliant, Pack of 1000
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Chassis Mount Circuit Board Support Screws - 75 & 75M4 Series
$49.99
Quantity: 1
Claim Your Seller Account
Chassis Mount Circuit Board Support Screws - 75 & 75M4 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chassis Mount Circuit Board Support Screws from the 75 & 75M4 Series are designed for a flawless fit in .156 PCB mounting holes. These female threaded screws accommodate both 6-32 and M4 thread sizes, ensuring versatility for various applications. Constructed from durable Nylon 66 UL94V-2 material, with UL94V-0 option available for enhanced safety, these screws offer resilience in temperatures ranging from -40 to 185F (-40 to 85C). Each pack contains 1000 screws, making them ideal for bulk installations. Meeting ASTM D 4066 and PA111 standards, these screws are RoHS compliant, ensuring environmental responsibility in your setups.
Product Specifications

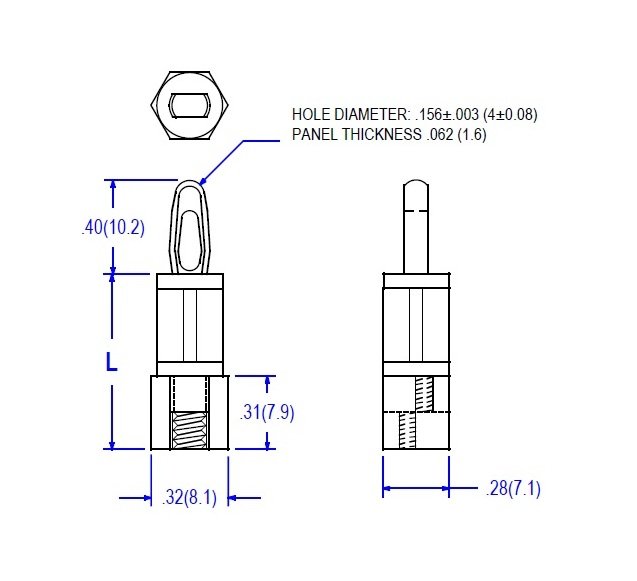

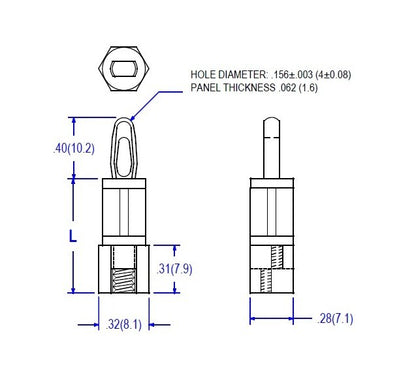

Specifications Dim L
1.00 (25.4) inches (mm)
Specifications Thread Size
M4
