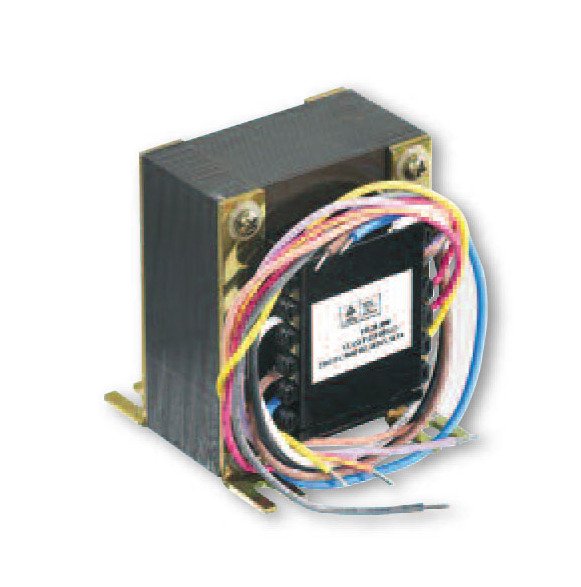

The Chassis Mount Leaded World Series™ Power Transformers from Triad International Series are expertly designed with European style split bobbins to meet international safety agency standards, ensuring superior performance and reliability. With sizes ranging from 5 VA to 56 VA, featuring primary windings of 115 V / 230 V 50/60 Hz, 3,500 V isolation between primary and secondary, and a 6 mm creepage distance primary to secondary, these transformers offer exceptional efficiency and safety. The split bobbin construction reduces interwinding capacitance, eliminating the need for electrostatic shielding, and the transformers can be connected in series or parallel for added versatility.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0

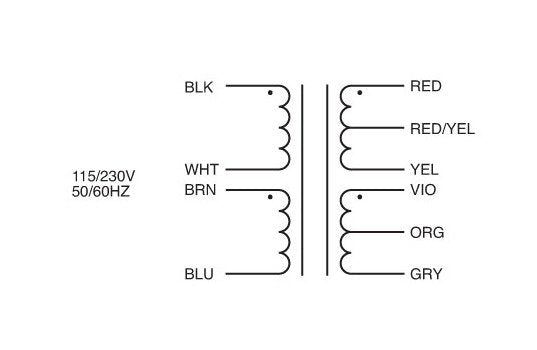

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independently
Specifications Case Type
U
Specifications Center Tap
Y
Specifications Creepage Distance
6 mm

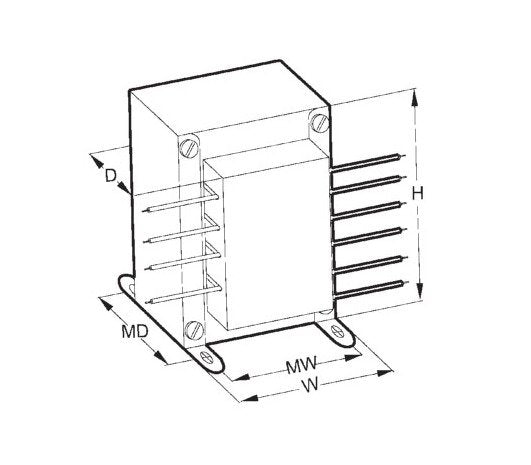

Specifications Depth D
2 5/8 in
Specifications Electrical Rating
56.0 V·A
Specifications Height H
3 1/16 in
Specifications Mounting Depth
2 1/4 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
14.00 V | 4.000 A
Specifications Secondary Series Connected
28.0 V | 2.000 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.70 lb
Specifications Width W
2 9/16 in
Technical Notes 0
Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independently
