Chassis Mount Plastic Rivet for Circuit Board Supports
Chassis Mount Plastic Rivet for Circuit Board Supports
SKU:01C-eebfe7
Securely lock circuit board supports with the 61 Series Plastic Rivet for Chassis Mounts. Releaseable design. Nylon 66 material. RoHS compliant. Temp Range: -40 to 185F.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Chassis Mount Plastic Rivet for Circuit Board Supports
$24.99
Quantity: 1
Claim Your Seller Account
Chassis Mount Plastic Rivet for Circuit Board Supports
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

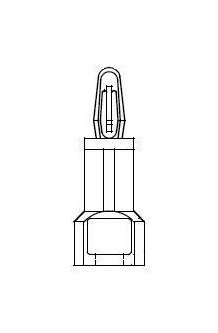

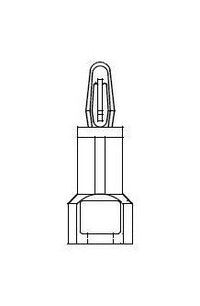

The 61 Series Chassis Mount Plastic Rivet is a versatile solution for securely locking circuit board supports onto chassis. Designed for ease of installation and releaseability, this PCB support features a .156 board hole and is compatible with AEH Snap Rivets (sold separately) for efficient assembly. Crafted from Nylon 66 UL94V-2 material (UL94V-0 available), this product meets ASTM D4066, PA111 standards and is RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), it ensures reliable performance in various environments.
Product Specifications

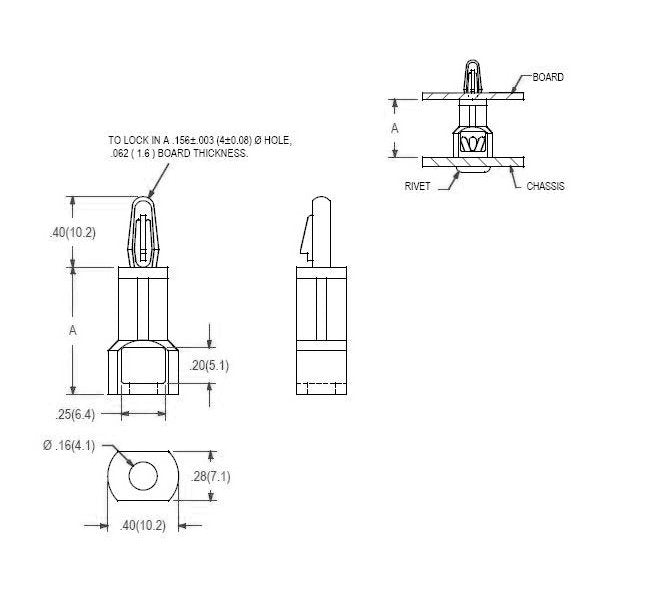

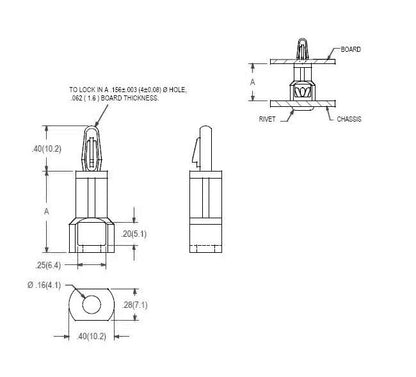

Specifications Chassis Thickness Range Available Min Max
.026 - .341 (.7-8.7) inches (mm)
Specifications Dim A
.625 (15.9) inches (mm)
Specifications Use Aeh Snap Rivet06 01 Series Sold Separately
Download Datasheet(PDF) to Choose Snap Rivet According to Chassis Thickness - All Rivets are interchangeable with all 01-61 Sizes inches (mm)
