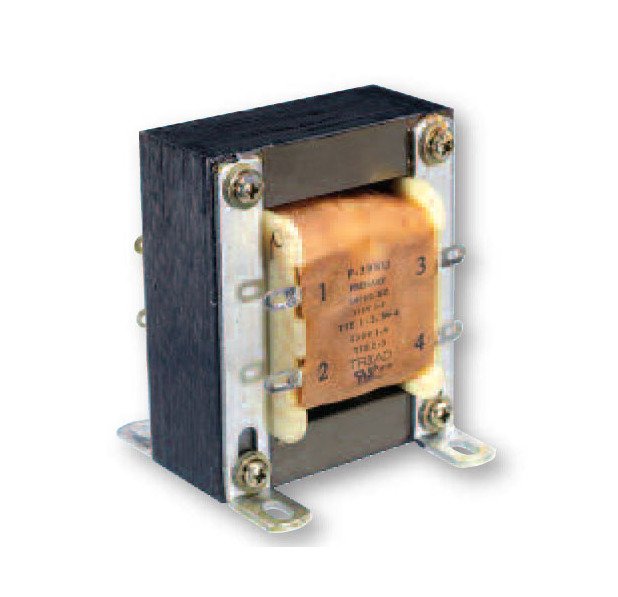

• Chassis Mount Power Control Transformers - Voltage 115V/230V - Image 1
  • Chassis Mount Power Control Transformers - Voltage 115V/230V - Image 2
  • Chassis Mount Power Control Transformers - Voltage 115V/230V - Image 3
1 3
Triad Magnetics →

Chassis Mount Power Control Transformers - Voltage 115V/230V

Chassis Mount Power Control Transformers - Voltage 115V/230V

POW-22c17f

Reliable Chassis Mount Power Control Transformers for versatile electronic, electromagnetic, and electrical control needs. Primary voltages: 115V/230V, Secondary voltage: 24.0V at 3.0A.

$79.99
$79.99
Sale

Initiate Order

Chassis Mount Power Control Transformers - Voltage 115V/230V

Chassis Mount Power Control Transformers - Voltage 115V/230V

$79.99

Quantity: 1

Claim Your Seller Account

Chassis Mount Power Control Transformers - Voltage 115V/230V

Chassis Mount Power Control Transformers - Voltage 115V/230V

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Ideal for electronic, electromagnetic, and electrical control applications, the Chassis Mount Power Control Transformers deliver reliable secondary voltages for various equipment. With primary AC voltages of 115V/230V and a secondary voltage of 24.0V at 3.0A, these transformers are suitable for use with relays, solenoids, motors, pumps, and more. Tested at 1,500 VRMS and featuring solder lug termination, these transformers provide dependable performance for a wide range of industrial applications.

Product Specifications

Applications Applications
RelaysSolenoidsSmall MotorsSpeed ChangersPumpsHeating ElementsControl Valves for Fluids and GasesFans and BlowersElectronic TubesAutomatic Assembly EquipmentRecording DevicesElevatorsDoor OpenersLow Voltage Lamps
Specifications Case Type
U
Specifications Connections
Lugs

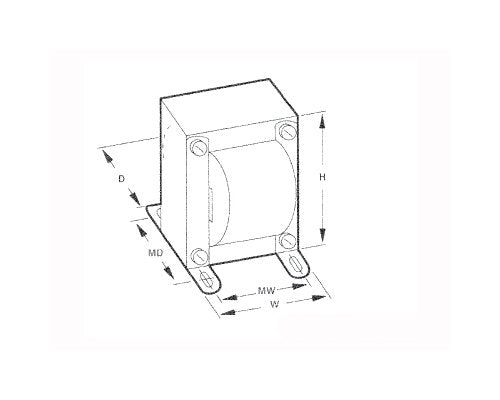

Specifications Depth D
2 13/16 in
Specifications Electrical Rating
72 V·A
Specifications Height H
3 13/32 in
Specifications Mounting Depth
2 1/4 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
2 1/4 in
Specifications Primary Alternating Current Ac Voltage
115 V | 230 V
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Secondary Voltage In Parallel Ac
12.0 V at 6.0 A
Specifications Secondary Voltage In Series Ac
24.0 V at 3.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
4.3 lb
Specifications Width W
3 13/16 in
Technical Notes Technical Notes

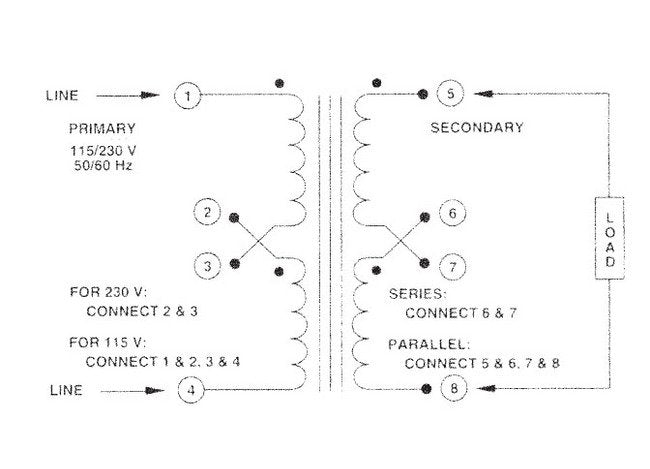

Hi-pot tested at 1,500 VRMS.Secondaries may be connected in series or parallel for expanded voltage and current ranges. See Control Transformer Connections diagram.Transformer termination is solder lug.
