Chassis-Mount Power Transformers - Single Secondary

Name: Chassis-Mount Power Transformers - Single Secondary
Brand: Triad Magnetics
SKU: POW-40529a
Price: 49.99 USD
Availability: OutOfStock

SKU:POW-40529a

Versatile Chassis-Mount Power Transformers for precise power supply applications, featuring standardized voltages and robust construction.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

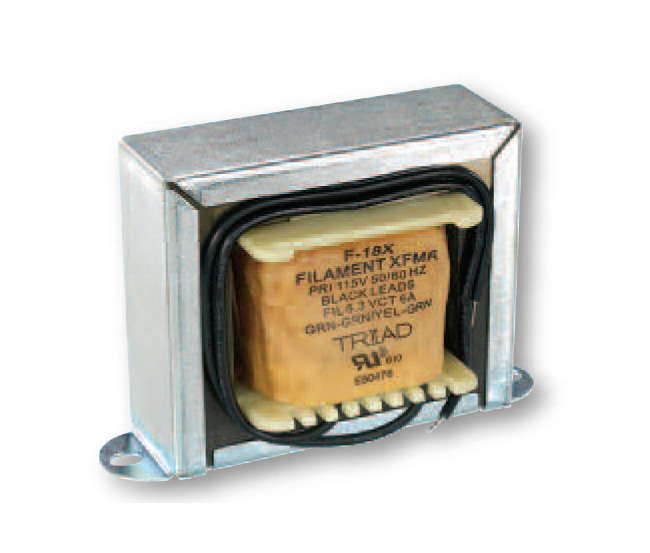

The Chassis-Mount Single Secondary Power Transformers from Triad are meticulously designed to meet a versatile range of power supply needs, whether for direct use or integration into various circuits. With primary voltages compatible with 115V and 230V systems and secondary voltages tailored for control, filament, and low-level signaling applications, these transformers offer reliable performance in standard, industry-approved configurations. Featuring a robust design with a Center Tap transformer contact type and a secondary current rating of 3.000 A, these transformers deliver dependable power conversion with a secondary RMS test voltage of 2,500V. Ideal for applications requiring precision and efficiency, these transformers boast a compact X case type, convenient leads connection, and standard size and weight specifications for seamless integration.

Product Specifications

Specifications Case Type

Specifications Connections

Leads

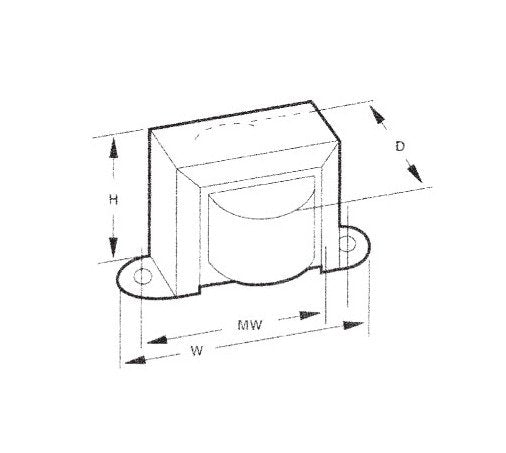

Specifications Depth D

2 in

Specifications Height H

1 15/16 in

Specifications Mounting Hole Size

3/16 in

Specifications Mounting Width

2 13/16 in

Specifications Primary Frequency

50 Hz | 60 Hz

Specifications Primary Voltage

115 V | 230 V

Specifications Secondary Current

3.000 A

Specifications Secondary Rms Test Voltage

2,500 V

Specifications Secondary Voltage

6.3 V

Specifications Transformer Contact Type

Center Tap

Specifications Weight

1.30 lb

Specifications Width W

3 5/16 in
