Chassis Mount Quick-Connect Power Transformers
Chassis Mount Quick-Connect Power Transformers
SKU:POW-fd4155
Reliable Chassis Mount Quick-Connect Power Transformers meeting stringent U.S. and International standards for versatile power conversion needs.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Chassis Mount Quick-Connect Power Transformers
$99.99
Quantity: 1
Claim Your Seller Account
Chassis Mount Quick-Connect Power Transformers
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

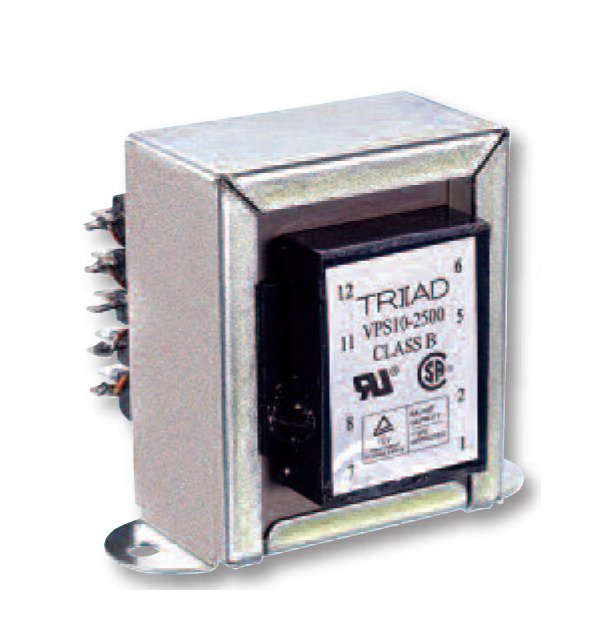

Meet U.S. and International standards with our Chassis Mount Quick-Connect Power Transformers. Featuring a dual bobbin design in an insulating shroud, UL approved high temperature material construction, and primary-secondary electrical isolation. Available in sizes from 25 VA to 175 VA with 'quick connect' terminations, ensuring ease of use and safety in diverse applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

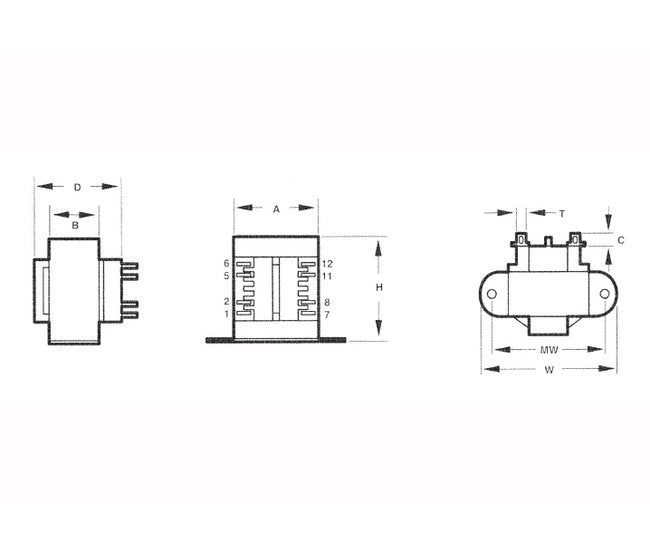

Specifications Depth D
1 15/16 in
Specifications Dimension A
2 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
25 V·A
Specifications Height H
2 5/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
6.3 V at 4.0 A
Specifications Secondary Series
12.6 V CT at 2.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.30 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
