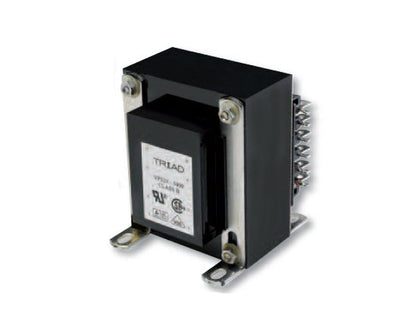

Chassis Mount Quick-Connect Power Transformers
Chassis Mount Quick-Connect Power Transformers
SKU:POW-6946bc
High-quality Chassis Mount Quick-Connect Power Transformers meeting international standards, electrically isolated for safety, with convenient 'quick connect' terminations.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Chassis Mount Quick-Connect Power Transformers
$79.99
Quantity: 1
Claim Your Seller Account
Chassis Mount Quick-Connect Power Transformers
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chassis Mount Quick-Connect Power Transformers from the World Series⢠are meticulously crafted to meet stringent U.S. and International standards including CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design in an insulating shroud made of UL approved high-temperature material, these transformers eliminate the need for electrostatic shielding due to minimal capacitance between coils. With primary and secondary electrical isolation and sizes ranging from 25 VA to 175 VA, these transformers ensure optimum performance and safety. Equipped with 'quick connect' terminations, they offer convenience and reliability for a wide range of power applications.
Product Specifications
Specifications Depth D
2 11/16 in
Specifications Dimension B
1 5/8 in
Specifications Dimension C
3/8 in
Specifications Dimension T
1/4 in
Specifications Electrical Rating
130 V·A
Specifications Height H
3 3/8 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/2 in
Specifications Mounting Width
2 1/4 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
5.0 V at 26.0 A
Specifications Secondary Series
10.0 V CT at 13.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
4.10 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
