Chassis Mount Quick-Connect Power Transformers
Chassis Mount Quick-Connect Power Transformers
SKU:POW-f62419
Efficiently meet ASTM, IEC, and TUV standards with our Chassis Mount Quick-Connect Power Transformers. Available in multiple VA sizes with 'quick connect' terminations.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Chassis Mount Quick-Connect Power Transformers
$99.99
Quantity: 1
Claim Your Seller Account
Chassis Mount Quick-Connect Power Transformers
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

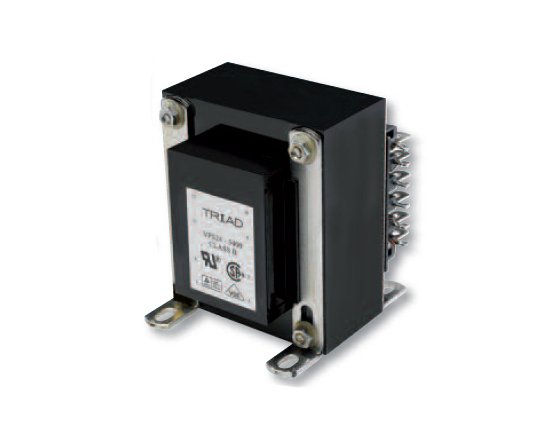

The Chassis Mount Quick-Connect Power Transformers from the World Series™ line by Triad are meticulously engineered to meet stringent U.S. and International standards such as CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design encased in high temperature insulating shroud, these transformers eliminate the need for electrostatic shielding. With primary and secondary coils electrically isolated, they offer versatility in series or parallel connection. Ranging from 25 VA to 175 VA, these transformers boast 'quick connect' terminations for ease of installation, making them an ideal choice for various industrial and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

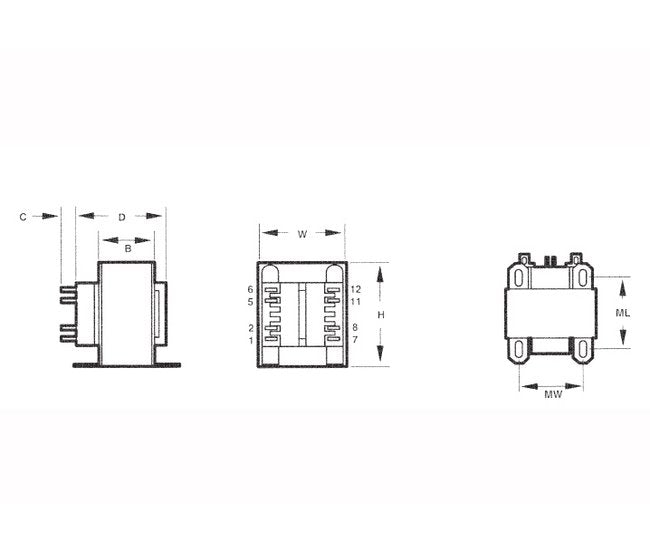

Specifications Depth D
2 11/16 in
Specifications Dimension B
1 5/8 in
Specifications Dimension C
3/8 in
Specifications Dimension T
1/4 in
Specifications Electrical Rating
130 V·A
Specifications Height H
3 3/8 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/2 in
Specifications Mounting Width
2 1/4 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
6.3 V at 20.6 A
Specifications Secondary Series
12.6 V CT at 10.3 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
4.10 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
