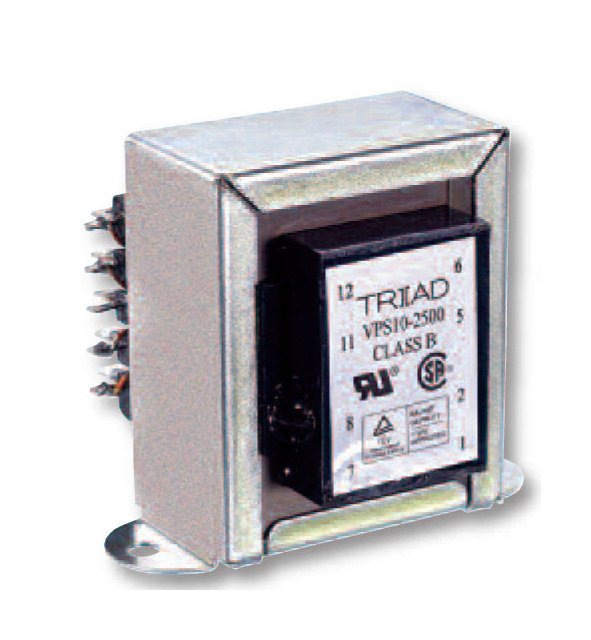

Chassis Mount Quick-Connect Power Transformers
Chassis Mount Quick-Connect Power Transformers
SKU:POW-cb082d
High-quality Chassis Mount Power Transformers with dual bobbin design, electrical isolation, and quick-connect terminations for reliable and convenient power solutions.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Chassis Mount Quick-Connect Power Transformers
$69.99
Quantity: 1
Claim Your Seller Account
Chassis Mount Quick-Connect Power Transformers
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chassis Mount Quick-Connect Power Transformers from the World SeriesTM line are meticulously designed to meet a range of U.S. and International standards including CSA, IEC, TUV, and UL requirements, making them ideal for both consumer and institutional applications. With a dual bobbin design encased in high-temperature insulating material, these transformers eliminate the need for electrostatic shielding due to minimal capacitance between coils. Offering electrical isolation between primary and secondary coils, these transformers come in sizes from 25 VA to 175 VA, providing reliable power solutions. Equipped with 'quick connect' terminations, these transformers offer convenience and efficiency for various power applications.
Product Specifications
Note 0
Class 2/3 UL File: E65390

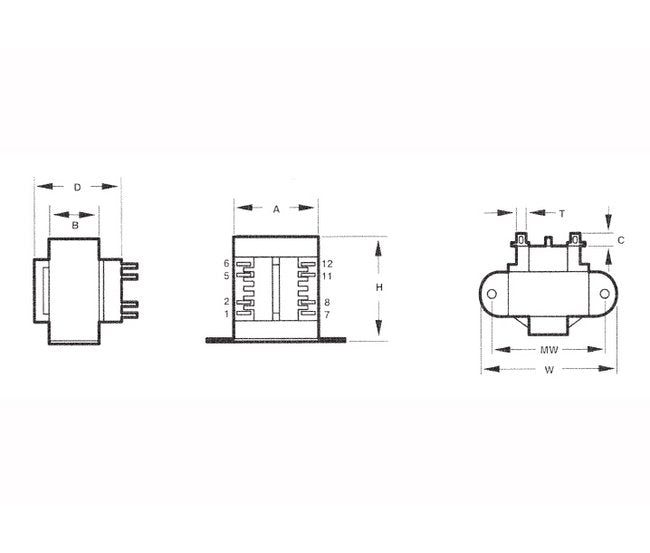

Specifications Depth D
1 15/16 in
Specifications Dimension A
2 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
25 V·A
Specifications Height H
2 5/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
14.0 V at 1.8 A
Specifications Secondary Series
28.0 V CT at 0.9 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.30 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
