Chassis Mount Quick-Connect Power Transformers
Chassis Mount Quick-Connect Power Transformers
SKU:POW-2aa2e1
High-quality Chassis Mount Quick-Connect Power Transformers by Triad, meeting international standards & offering convenient 'quick connect' terminations.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Chassis Mount Quick-Connect Power Transformers
$149.99
Quantity: 1
Claim Your Seller Account
Chassis Mount Quick-Connect Power Transformers
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

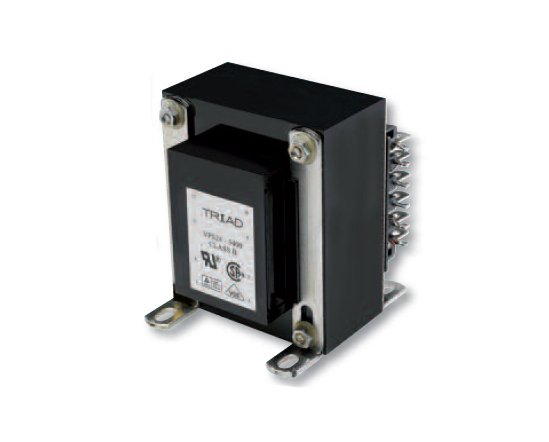

The Chassis Mount Quick-Connect Power Transformers from the World Series™ by Triad are meticulously crafted to meet a variety of international standards, including CSA, IEC, TUV, and UL requirements - ideal for government and institutional procurement. These transformers feature a dual bobbin design within an insulating shroud, constructed with UL-approved high-temperature material. With primary and secondary coils electrically isolated, and available in sizes ranging from 25 VA to 175 VA, these transformers offer both convenience and reliability. The 'quick connect' terminations provide ease of installation, making them a top choice for powering a range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

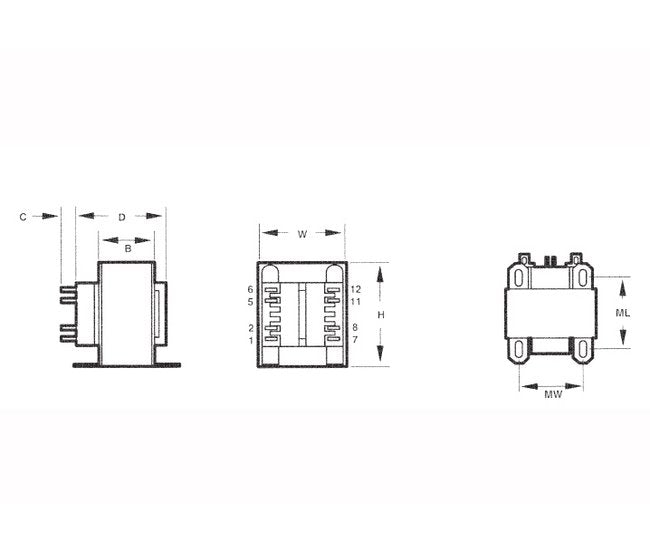

Specifications Depth D
2 13/16 in
Specifications Dimension B
1 5/8 in
Specifications Dimension C
3/8 in
Specifications Dimension T
1/4 in
Specifications Electrical Rating
175 V·A
Specifications Height H
3 3/4 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/2 in
Specifications Mounting Width
2 1/2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
18.0 V at 9.6 A
Specifications Secondary Series
36.0 V CT at 4.8 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
5.50 lb
Specifications Width W
3 1/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
