Chassis Mount Quick-Connect Power Transformers
Chassis Mount Quick-Connect Power Transformers
SKU:POW-cf438b
Innovative Chassis Mount Quick-Connect Power Transformers meeting top industry standards with dual bobbin design & convenient terminations.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Chassis Mount Quick-Connect Power Transformers
$89.99
Quantity: 1
Claim Your Seller Account
Chassis Mount Quick-Connect Power Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

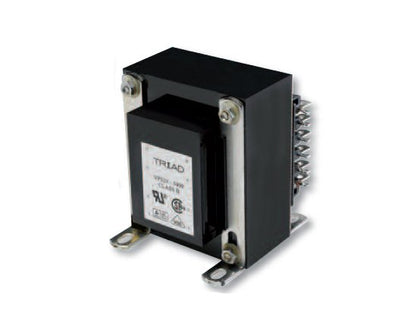

The Chassis Mount Quick-Connect Power Transformers from the World Series™ line are meticulously engineered to meet stringent U.S. and International standards including CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design encased in a high-temperature insulating shroud, these transformers eliminate the need for electrostatic shielding due to minimal capacitance between coils. With primary and secondary electrical isolation, they offer optimal safety. Available in various sizes from 25 VA to 175 VA, these transformers come with convenient 'quick connect' terminations, making installation hassle-free for a wide range of applications.
Product Specifications
Note 0
Class 2/3 UL File: E65390
Specifications Depth D
2 5/16 in
Specifications Dimension B
1 3/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
80 V·A
Specifications Height H
3 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/4 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
18.0 V at 4.4 A
Specifications Secondary Series
36.0 V CT at 2.2 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.80 lb
Specifications Width W
2 1/2 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
