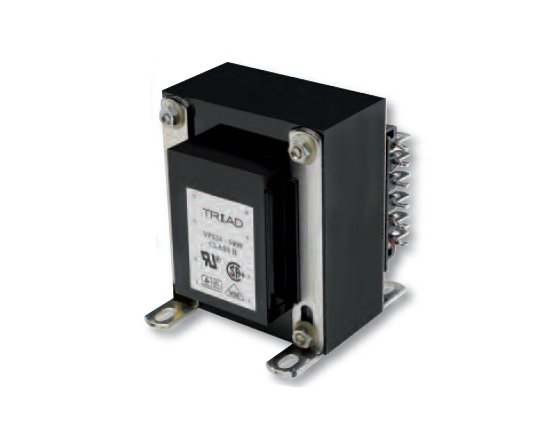

The Chassis Mount Quick-Connect World Series Power Transformers are meticulously engineered to meet a spectrum of U.S. and International standards, including CSA, IEC, TUV, and UL requirements. Crafted with a dual bobbin design encased in a high-temperature insulating shroud, these transformers eliminate the need for electrostatic shielding, ensuring optimum performance. With dual electrical isolation between primary and secondary coils and the core itself, these transformers offer utmost safety and reliability. Ranging from 25 VA to 175 VA, they feature 'quick connect' terminations for seamless installation in diverse applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

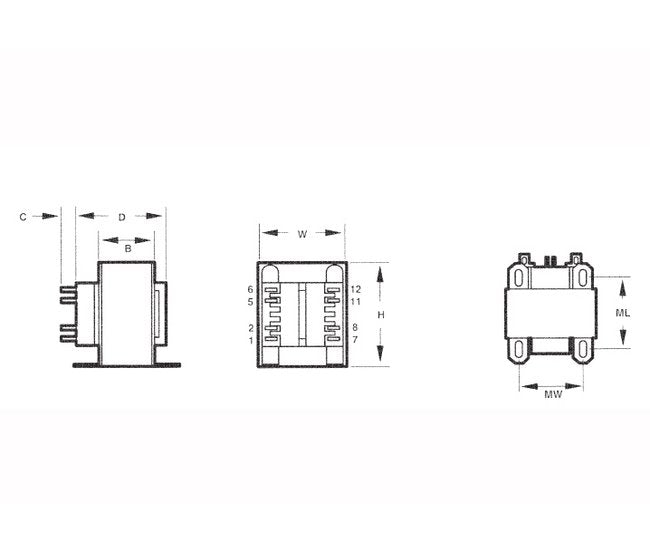

Specifications Depth D
2 5/16 in
Specifications Dimension B
1 3/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
80 V·A
Specifications Height H
3 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/4 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
10.0 V at 8.0 A
Specifications Secondary Series
20.0 V CT at 4.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.80 lb
Specifications Width W
2 1/2 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
