Triad Magnetics →

Chassis Mount Quick Pack™ Power Transformers - Compact and Efficient Power Solutions

Chassis Mount Quick Pack™ Power Transformers - Compact and Efficient Power Solutions

POW-de0275

Get compact, efficient power delivery with Chassis Mount Quick Pack™ Power Transformers. Ideal for diverse applications.

$79.99
$79.99
Sale

Initiate Order

Chassis Mount Quick Pack™ Power Transformers - Compact and Efficient Power Solutions

Chassis Mount Quick Pack™ Power Transformers - Compact and Efficient Power Solutions

$79.99

Quantity: 1

Claim Your Seller Account

Chassis Mount Quick Pack™ Power Transformers - Compact and Efficient Power Solutions

Chassis Mount Quick Pack™ Power Transformers - Compact and Efficient Power Solutions

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

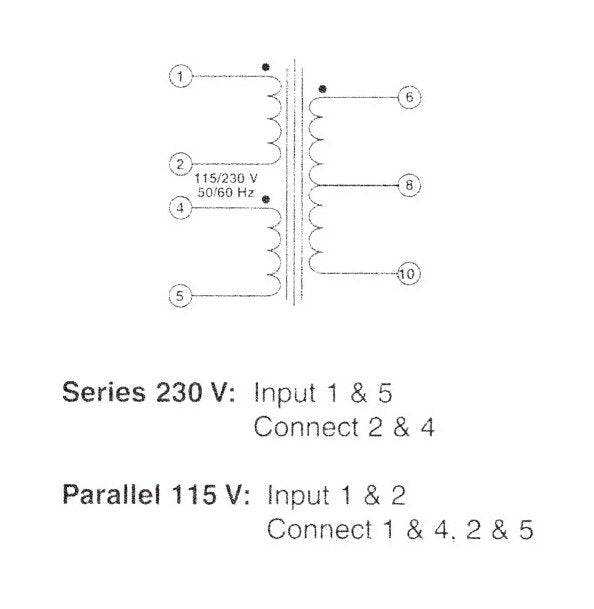

Experience a breakthrough in size and weight reduction with the Chassis Mount Quick Pack™ Power Transformers. Designed for versatility, these bobbin-wound transformers offer a compact solution for various applications. The split bobbin nonconcentric winding eliminates the need for costly electrostatic shielding, ensuring cost-effectiveness without compromising performance. With a center tap contact type and dual primary configuration, these transformers provide reliable power delivery at an optimum Electrical Rating of 100 V·A. Meet your power requirements efficiently with these hi-pot tested transformers featuring Class B insulation and complying with industry standards for maximum safety.

Product Specifications

Specifications Dimension A
3 1/16 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
100 V·A
Specifications Height H
2 9/16 in
Specifications Length L
4 1/32 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
3 9/16 in
Specifications Output Rating
16.0 V CT at 6.25 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
2.80 lb
Specifications Width W
2 1/4 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
