Chassis Quick-Connect Power Transformers
Chassis Quick-Connect Power Transformers
SKU:POW-502d18
Meet U.S. and International standards with Chassis Mount Quick-Connect Power Transformers designed for efficiency and convenience.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Chassis Quick-Connect Power Transformers
$99.99
Quantity: 1
Claim Your Seller Account
Chassis Quick-Connect Power Transformers
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

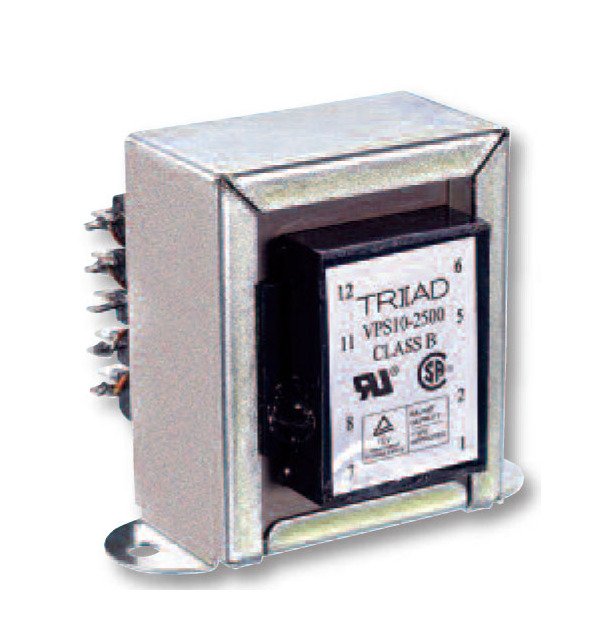

Experience superior efficiency and compliance with Chassis Mount Quick-Connect World Series™ Power Transformers. These transformers conform to U.S. and International standards including CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design enclosed in high-temperature UL approved material, they eliminate the need for electrostatic shielding due to minimal capacitance between coils. With electric isolation between primary and secondary, these transformers come in sizes from 25 VA to 175 VA, offering convenient 'quick connect' terminations.
Product Specifications

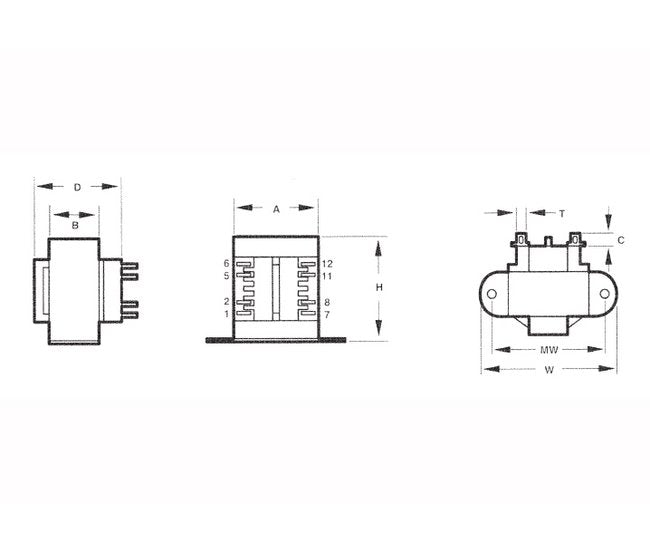

Specifications Depth D
2 in
Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
43 V·A
Specifications Height H
2 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 13/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
8.0 V at 5.4 A
Specifications Secondary Series
16.0 V CT at 2.7 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.60 lb
Specifications Width W
3 1/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
