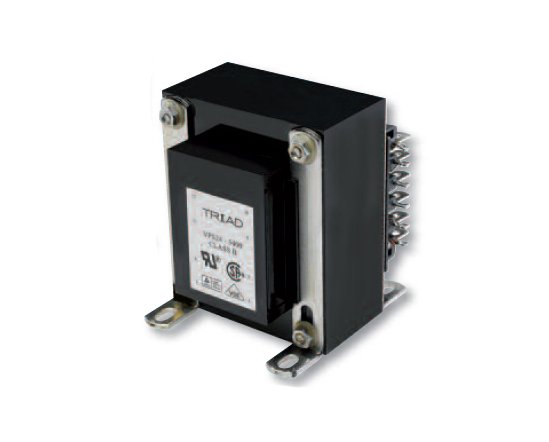

The Chassis Quick-Connect Power Transformers from the World Series™ line offer exceptional quality and compliance with various international standards like CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design within an insulating shroud made of UL approved high-temperature material, these transformers eliminate the need for electrostatic shielding. With primary and secondary electric isolation, they come in sizes ranging from 25 VA to 175 VA, providing reliable power solutions for diverse applications. The convenient 'quick connect' terminations enhance installation efficiency, making these transformers ideal for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

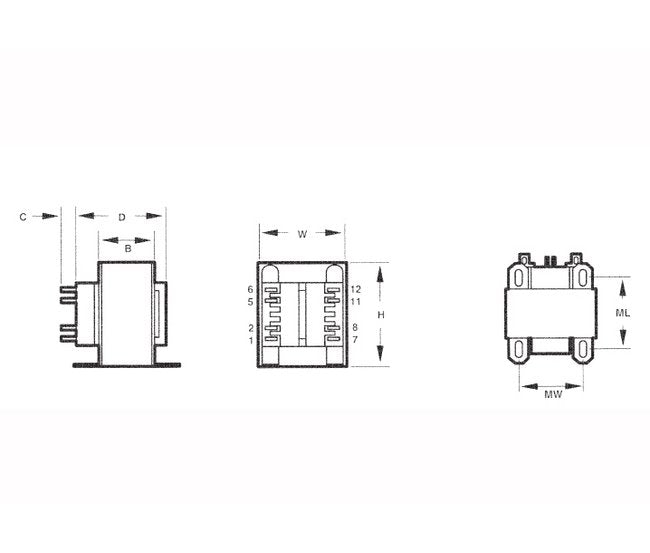

Specifications Depth D
2 5/16 in
Specifications Dimension B
1 3/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
80 V·A
Specifications Height H
3 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/4 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
115.0 V at 0.7 A
Specifications Secondary Series
230.0 V CT at 0.35 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.80 lb
Specifications Width W
2 1/2 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
