Chassis Side Circuit Board Support .156" Hole x 8-32 Thread

Name: Chassis Side Circuit Board Support .156" Hole x 8-32 Thread
Brand: All Electronics Hardware
SKU: 01C-ea0b07
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-ea0b07

Durable Chassis Side Circuit Board Support with .156" Hole Diameter & 8-32 Threading. RoHS Compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

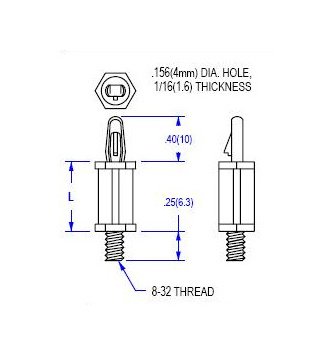

Enhance your circuit board durability with our Chassis Side Circuit Board Support. This support features a .156" board hole diameter and 8-32 threading, securely fastened by an 8-32 hex nut. Made of Nylon 66 UL94V-2 material, it meets ASTM D 4066 and PA111 standards, ensuring high-quality and RoHS compliance. With a temperature range of -40 to 185F (-40 to 85C), it guarantees reliable performance in diverse environments. Each pack contains 500 supports for efficient installation. Upgrade to UL94V-0 material by adding 'X' to the part number.

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Dim L

.500 (12.7) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)
