CHE Series Metallized Film Capacitors, 1.5 µF, 525 V
CHE Series Metallized Film Capacitors, 1.5 µF, 525 V
SKU:MET-0e6da9
High-performance metallized film capacitors for industrial applications. 1.5 µF, 525 V with 800 A max current. Reliable and stackable design.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
CHE Series Metallized Film Capacitors, 1.5 µF, 525 V
$39.99
Quantity: 1
Claim Your Seller Account
CHE Series Metallized Film Capacitors, 1.5 µF, 525 V
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

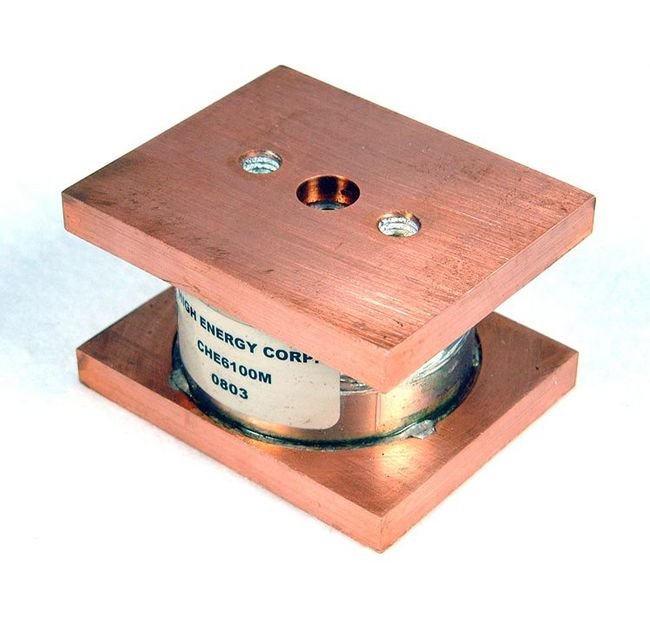

The CHE Series Metallized Film Capacitors offer superior performance with a capacitance range of 0.2 to 2.0 µF, VMAX (RMS) of 525 V, and IMAX (RMS) of 800 A. Designed for high-power applications, these capacitors are conduction-cooled by bus bars and operate at temperatures up to +90 ºC. With low dissipation factor and stray inductance, they provide reliable power handling capabilities. Stackable in series and parallel configurations, these capacitors are ideal for demanding industrial environments, meeting stringent institutional procurement standards.
Product Specifications
Specifications Cap
1.5 µF
Specifications Capacitance Range
0.2 to 2.0 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

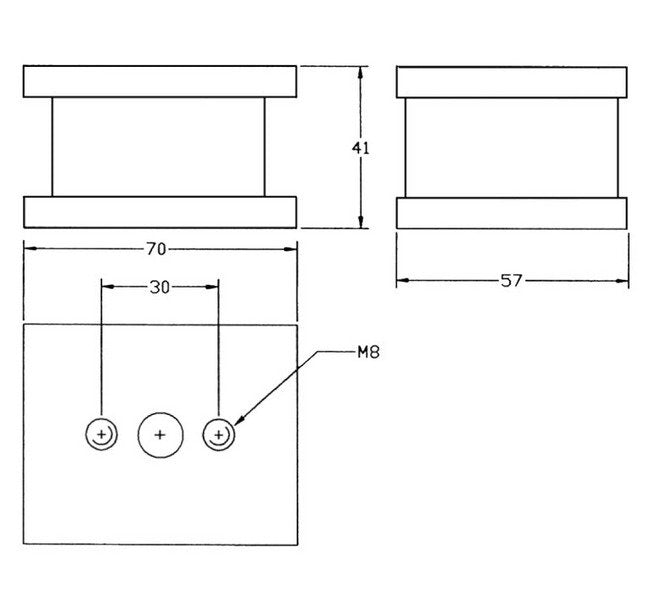

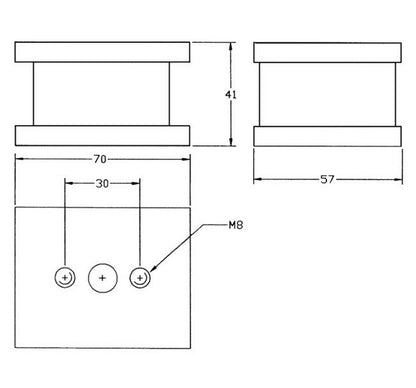

Specifications Dimensions
2 3/4 x 2 1/4 x 2 5/8 in | 70 x 57 x 41 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
170 kHz
Specifications Fl
154 kHz
Specifications Fmax
700 kHz
Specifications Imax Rms
800 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
400 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
525 V
Specifications Weight
0.5 kg | 1.1 lb
