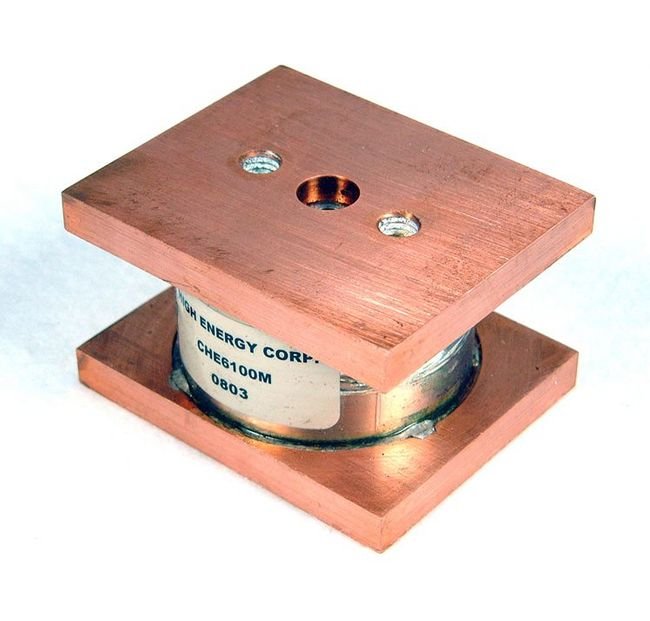

CHE Series Metallized Film Capacitors - High Voltage Power Rated
CHE Series Metallized Film Capacitors - High Voltage Power Rated
SKU:MET-ad32ad
High-performance CHE Series Metallized Film Capacitors with up to 700 VRMS working voltage, ideal for diverse electrical applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
CHE Series Metallized Film Capacitors - High Voltage Power Rated
$59.99
Quantity: 1
Claim Your Seller Account
CHE Series Metallized Film Capacitors - High Voltage Power Rated
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHE Series Metallized Film Capacitors are engineered for high-performance applications, offering a working voltage of up to 700 VRMS and a maximum power capacity of 400 kVA. With a capacitance range from 0.01 to 0.33 µF and ±10% capacitance tolerance, these capacitors provide reliable operation in demanding environments. Featuring a compact design of 2 3/4 x 2 1/4 x 2 5/8 in and conduction cooling by bus bars, they ensure efficient heat dissipation and stable performance up to +90 ºC. These capacitors are ideal for series and parallel stacking, making them versatile for diverse electrical setups.
Product Specifications
Specifications Cap
0.01 to 0.33 µF
Specifications Capacitance Range
0.01 to 0.33 µF Custom
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

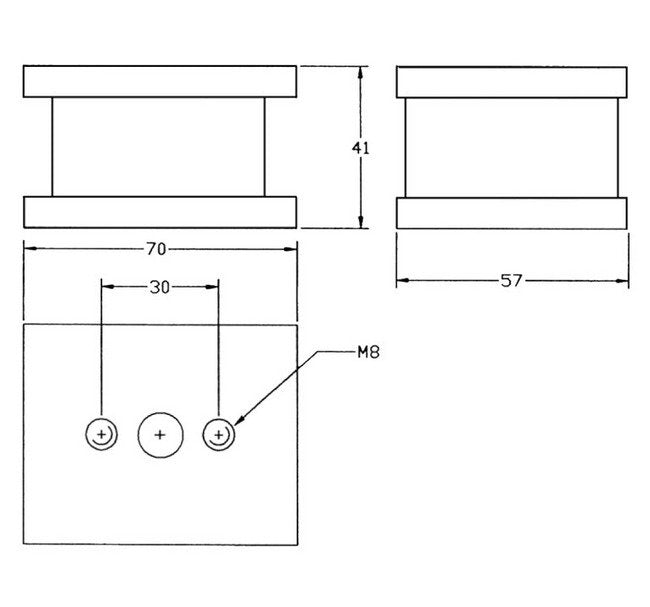

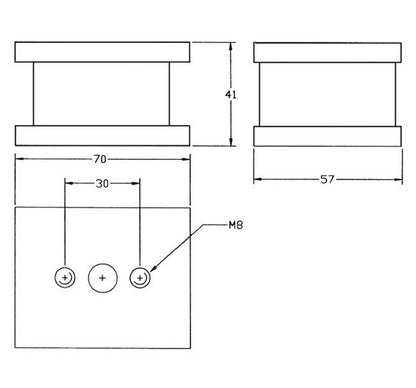

Specifications Dimensions
2 3/4 x 2 1/4 x 2 5/8 in | 70 x 57 x 41 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Operating Temperature
Up to +90 ºC
Specifications Stray Inductance
Less than 5 nH
Specifications Weight
0.5 kg | 1.1 lb
