Check-All® 1-1/2" TV Style Tubing Check Valve
Check-All® 1-1/2" TV Style Tubing Check Valve
SKU:TVS-42ffcf
Versatile 1-1/2" TV Style Tubing Check Valve for precise pressure control and reliability in industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Check-All® 1-1/2" TV Style Tubing Check Valve
$129.99
Quantity: 1
Claim Your Seller Account
Check-All® 1-1/2" TV Style Tubing Check Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

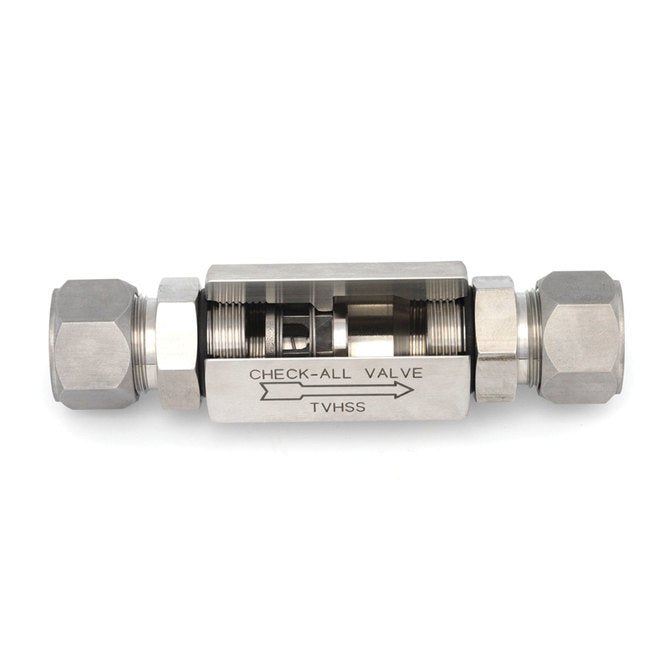

The Check-All® 1-1/2" TV Style Tubing Check Valve is a versatile compression valve designed for minimal pressure drop. Constructed with high-quality 316 Stainless Steel, this valve is fitted with compression tube fittings, ferrules, and nuts, ensuring reliable performance. With a standard cracking pressure of 0.500 psi, it offers precision control and can be configured as a relief valve or vacuum breaker. Certified with ISO 9001 standards, this valve is ideal for applications requiring robust performance and precision.
Product Specifications
Note
Consult the factory for instrumentation applications or for more information.Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Brass = BR | Carbon Steel = CS
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Line Size
1-1/2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
3000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
J
Specifications Special Options
O = Outer O-Ring Seals Same as Seat | T = FEP Encapsulated Spring
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.500 psi
Specifications Standard End Fitting O Ring Material
Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Polytetrafluoroethylene (PTFE) = TF
Specifications Valve Style
TV
