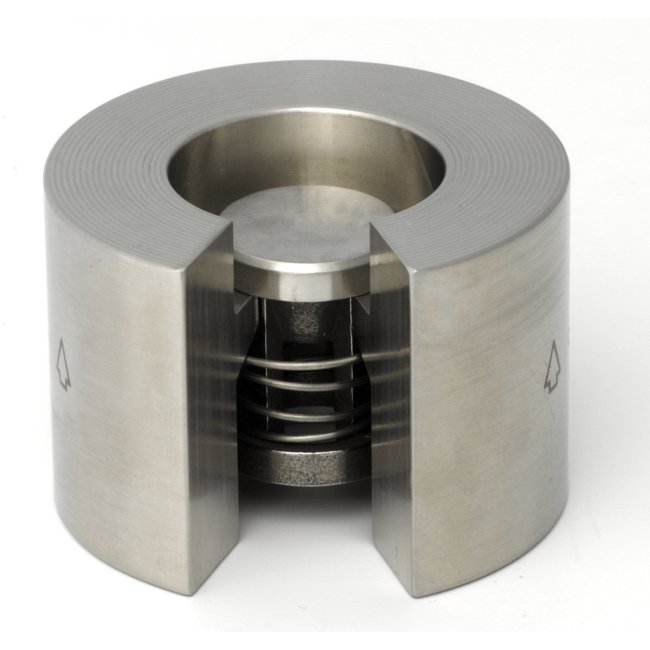

Check-All® 1/2" WV Style Wafer Insert Check Valve
Check-All® 1/2" WV Style Wafer Insert Check Valve
SKU:WVS-e721a5
Check-All® 1/2" WV Style Check Valve, 0.125 psi Standard Cracking Pressure, ANSI Class 150-2500, CE & ISO Certified
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Check-All® 1/2" WV Style Wafer Insert Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
Check-All® 1/2" WV Style Wafer Insert Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check-All® 1/2 inch WV Style Wafer Insert Check Valve is expertly designed for seamless integration between ANSI flanges, featuring a 'drop in' valve body for efficient installation and removal in rigid piping systems. This valve stands out with its 316 Stainless Steel construction and a Standard Cracking Pressure of 0.125 psi. Ideal for low-pressure relief or vacuum breaker applications, this valve offers reliable performance and durability. Meeting ANSI Class 150 to 2500 standards, CE PED 2014/68/EU compliant, and ISO 9001 certified, this valve ensures quality and precision manufactured in the USA.
Product Specifications
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1/2 in
Specifications Non Shock Pressure Rating
American National Standards Institute (ANSI) Class 150 to 2500
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
1500 psig
Specifications Non Shock Pressure Rating For Brass Valves
American National Standards Institute (ANSI) Class 150 - 300
Specifications Note For Standard Cracking Pressure
0.125 psi springs are not recommended for installations with flow vertical down.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
D
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.125 psi
Specifications Valve Style
WV
