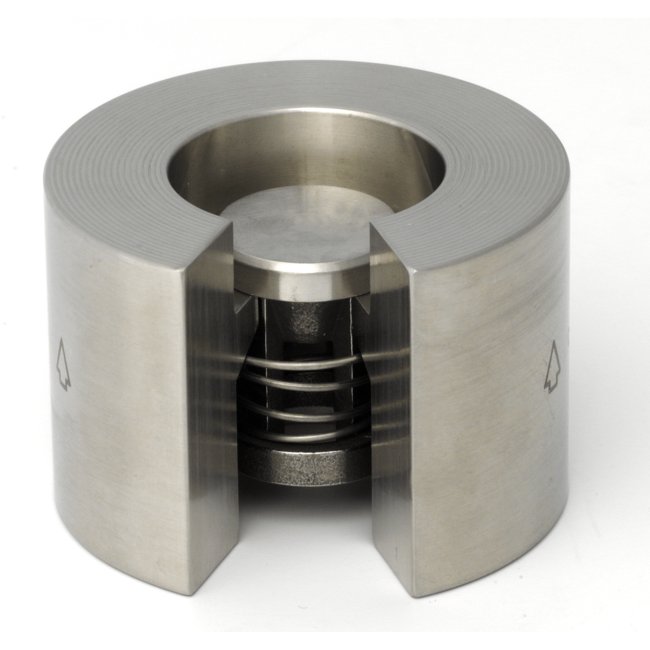

Check-All® 2-1/2" WV Style Wafer Insert Check Valve
Check-All® 2-1/2" WV Style Wafer Insert Check Valve
SKU:WVS-15231a
Reliable Check-All® 2-1/2" WV Style Wafer Insert Check Valve for industrial applications. Made in the USA from durable 316 Stainless Steel. Meets ANSI Class 150 - 1500.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Check-All® 2-1/2" WV Style Wafer Insert Check Valve
$129.99
Quantity: 1
Claim Your Seller Account
Check-All® 2-1/2" WV Style Wafer Insert Check Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check-All® 2-1/2" WV Style Wafer Insert Check Valve is a versatile valve designed to fit between ANSI flanges, offering quick installation and removal in rigid piping applications. With a standard cracking pressure of 0.125 psi, this valve can also function as a low-pressure relief valve or vacuum breaker. Made in the USA, this valve is constructed from high-quality 316 Stainless Steel, ensuring durability and reliability. Meeting ANSI Class 150 - 1500 non-shock pressure ratings, this valve promises secure operation in various industrial settings.
Product Specifications
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
2-1/2 in
Specifications Non Shock Pressure Rating
American National Standards Institute (ANSI) Class 150 - 1500
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
1500 psig
Specifications Non Shock Pressure Rating For Brass Valves
American National Standards Institute (ANSI) Class 150 - 300
Specifications Note For Standard Cracking Pressure
0.125 psi springs are not recommended for installations with flow vertical down.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
L
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.125 psi
Specifications Valve Style
WV
