Check-All® 2 Inch UV Style Union Insert Check Valve (0.125 psi Cracking Pressure)

Name: Check-All® 2 Inch UV Style Union Insert Check Valve (0.125 psi Cracking Pressure)
Brand: Check-All Valve Mfg. Co.
SKU: UVS-8c00de
Price: 139.99 USD
Availability: OutOfStock

SKU:UVS-8c00de

Premium 2" UV Style Union Check Valve for threaded pipe systems; Durable 316 Stainless Steel; 0.125 psi cracking pressure; Versatile & reliable choice.

$139.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

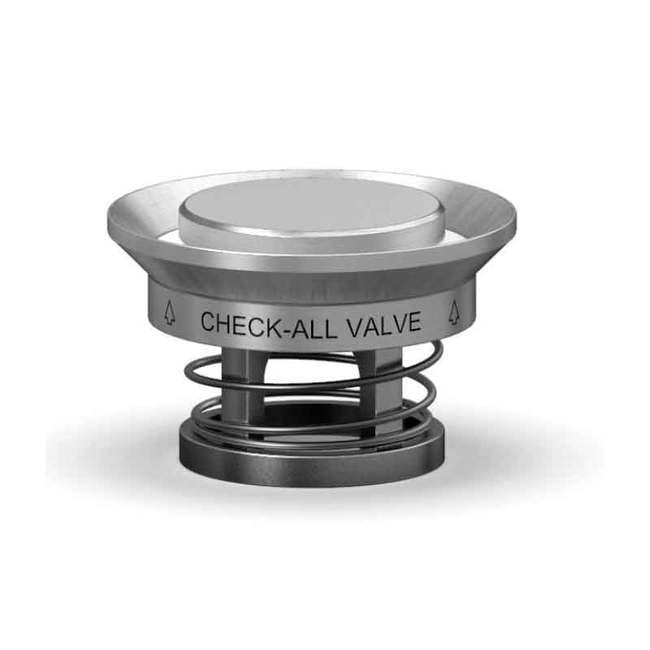

The Check-All® 2 Inch UV Style Union Insert Check Valve is a top-quality solution for threaded pipe systems, offering easy installation in standard and hammer type ground joint unions. Crafted with durable 316 Stainless Steel body material, this valve ensures reliability and longevity. Featuring a low 0.125 psi standard cracking pressure and compatible with various seat materials including Metal-to-Metal and Buna-N, this valve is versatile and suitable for both horizontal and vertical orientations. With a non-shock pressure rating of 3000 psig at 100ºF, it meets stringent industry standards and is PED compliant, making it ideal for applications requiring precision and performance.

Product Specifications

Additional Information

The valve works equally well in either a horizontal or vertical position with proper spring selection. Each Union Insert valve is furnished with a metal tag, which is quickly attached to the union when the valve is installed. This provides a permanent visual notification that the union contains a check valve. The UV valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings.PED Compliance Statement: Due to the unique "insert" design of our 3S, SC, CB, TC, SI, & UV, style check valves, they do not constitute an "identifiable pressure bearing housing" as defined in PED Guideline 1/8. These styles must be installed into either ferrules or fittings to create a pressure bearing housing. Instead, they are classified as "components of pressure equipment" as defined in PED Guideline 1/8. As a result, these valves can be sold in the European Community and no CE Mark is required.In addition applications where the maximum allowed operating pressure is 0.5 bar (7.2 psi) or less, do not fall under the PED, regardless of the valve style.

Note

Bore of union must be equal to I.D. of schedule 40 pipe. Use ground joint unions with 45º seat only (union not included).Made in USA.

Specifications Body Material

Specifications Body Material Availability

Specifications Certifications

European Conformity (CE) Non-PED Statement | International Organization for Standardization (ISO 9001) Certified

Specifications Nominal Pipe Size

2 in

Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei

3000 psig

Specifications Note For Material

Listed above are the most common material selections. Please contact the factory for additional options.

Specifications Note For Standard Cracking Pressure

0.125 psi springs are not recommended for installations with flow vertical down.

Specifications Seat Material

Specifications Size Code

Specifications Special Options

RT = Reverse Trim | T = FEP Encapsulated Spring

Specifications Spring Material

Specifications Standard Cracking Pressure

0.125 psi

Specifications Valve Style

Check-All® 2 Inch UV Style Union Insert Check Valve (0.125 psi Cracking Pressure)
