Check-All® 2" TV Style Tubing Check Valve with 0.500 psi Standard Cracking Pressure

Name: Check-All® 2" TV Style Tubing Check Valve with 0.500 psi Standard Cracking Pressure
Brand: Check-All Valve Mfg. Co.
SKU: TVS-8b0d26
Price: 129.99 USD
Availability: OutOfStock

SKU:TVS-8b0d26

Premium 2" TV Style Tubing Check Valve with 0.500 psi Cracking Pressure, CE PED & ISO 9001 Compliant

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

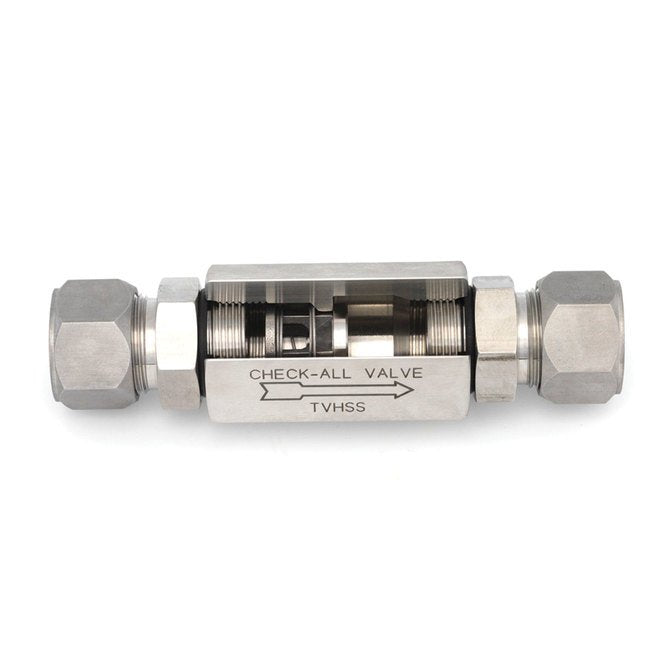

The Check-All® 2" TV Style Tubing Check Valve is expertly crafted for precision with compression tube fittings and a low pressure drop design. This valve, furnished with ferrules and nuts, can double as a relief valve or vacuum breaker depending on selected spring settings. Compliant with quality standards like European Conformity (CE) PED and ISO 9001, this valve is a reliable choice for industrial applications where performance and durability are non-negotiable.

Product Specifications

Note

Consult the factory for instrumentation applications or for more information.Made in USA.

Specifications Body Material

316 Stainless Steel = SS | Brass = BR | Carbon Steel = CS

Specifications Certifications

European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified

Specifications Line Size

2 in

Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei

2000 psig

Specifications Note For Material

Listed above are the most common material selections. Please contact the factory for additional options.

Specifications Note For Standard Cracking Pressure

0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.

Specifications Seat Material

Specifications Size Code

Specifications Special Options

O = Outer O-Ring Seals Same as Seat | T = FEP Encapsulated Spring

Specifications Spring Material

Specifications Standard Cracking Pressure

0.500 psi

Specifications Standard End Fitting O Ring Material

Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Polytetrafluoroethylene (PTFE) = TF

Specifications Valve Style

Check-All® 2" TV Style Tubing Check Valve with 0.500 psi Standard Cracking Pressure
