Check-All® 3/4" Wafer Insert Check Valve with 1.50psi Cracking Pressure
Check-All® 3/4" Wafer Insert Check Valve with 1.50psi Cracking Pressure
SKU:WVS-798ed7
Premium Check-All® Wafer Insert Check Valve: ANSI flange-compatible, 1.50psi cracking pressure, versatile applications, ISO 9001 certified, USA-made.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Check-All® 3/4" Wafer Insert Check Valve with 1.50psi Cracking Pressure
$249.99
Quantity: 1
Claim Your Seller Account
Check-All® 3/4" Wafer Insert Check Valve with 1.50psi Cracking Pressure
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

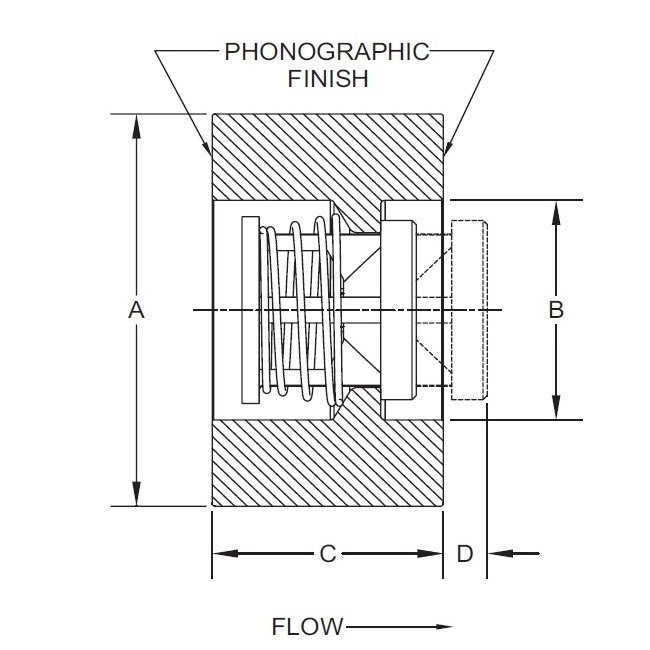

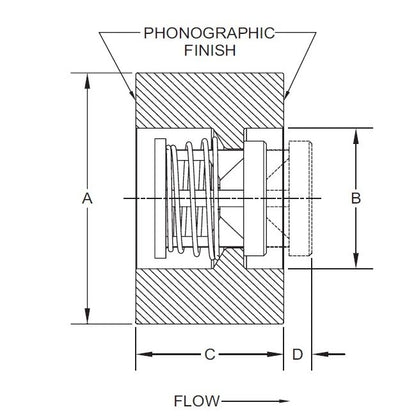

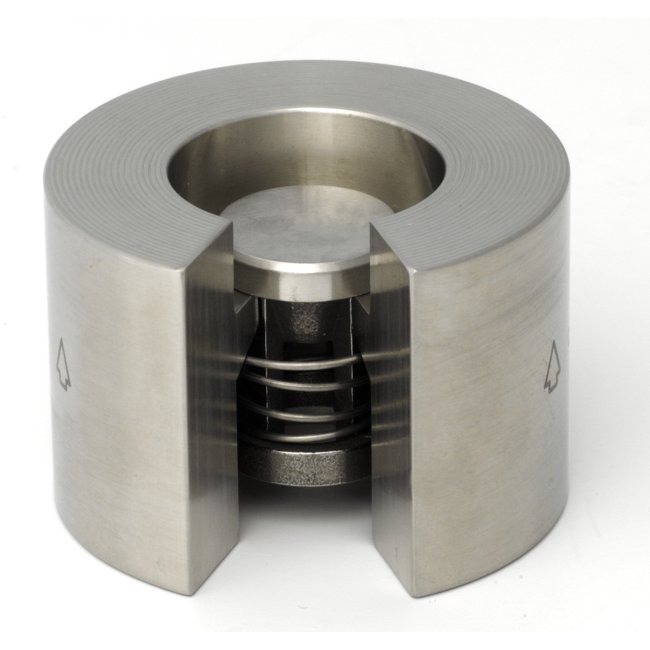

The Check-All® WV Style Wafer Insert Check Valve is a premium solution designed for seamless integration between ANSI flanges. Featuring a 'drop in' valve body for swift installation and removal in rigid piping systems, this valve requires two gaskets, ensuring enhanced sealing performance. Built from high-grade materials including 316 Stainless Steel, Titanium, and other alloys, it offers exceptional durability and reliability. With a standard cracking pressure of 1.50 psi and a range of seat material options, this valve is versatile and can also be utilized as a low pressure relief valve or vacuum breaker. Certified for ISO 9001 compliance and made in the USA, this valve exemplifies quality and precision engineering.
Product Specifications
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
3/4 in
Specifications Non Shock Pressure Rating
American National Standards Institute (ANSI) Class 150 to 2500
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
1500 psig
Specifications Non Shock Pressure Rating For Brass Valves
American National Standards Institute (ANSI) Class 150 - 300
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
F
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
WV
