Reliable 3/4in UV Style Check Valve with 0.500 psi Standard Cracking Pressure, CE & ISO 9001 Certified

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

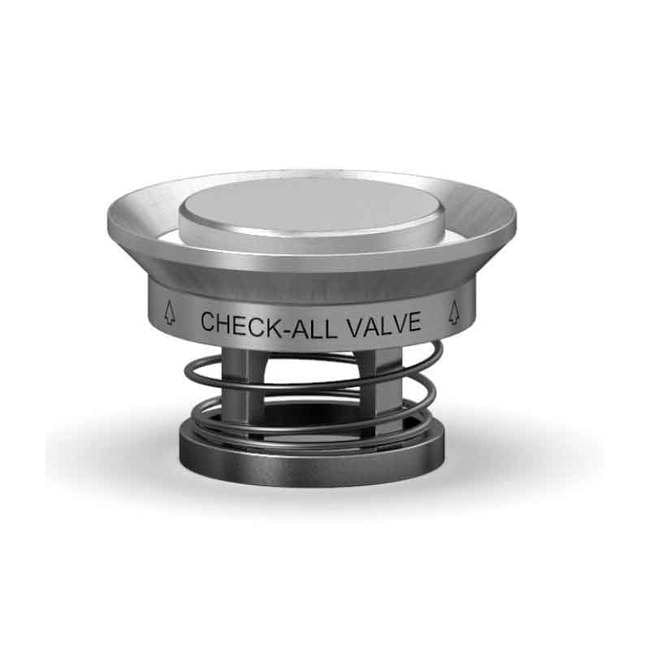

The Check-All® 3/4 Inch UV Style Union Insert Check Valve is a premium-grade valve offering seamless installation in threaded pipe systems through standard unions. Crafted with durable 316 Stainless Steel body and Metal-to-Metal sealing for reliable performance, this valve ensures a tight seal with a Standard Cracking Pressure of 0.500 psi. Suitable for horizontal or vertical use, it comes with a metal tag for clear identification. Certified with CE and ISO 9001, this valve is a versatile solution compliant with PED requirements for European markets.

Product Specifications

Additional Information

The valve works equally well in either a horizontal or vertical position with proper spring selection. Each Union Insert valve is furnished with a metal tag, which is quickly attached to the union when the valve is installed. This provides a permanent visual notification that the union contains a check valve. The UV valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings.PED Compliance Statement: Due to the unique "insert" design of our 3S, SC, CB, TC, SI, & UV, style check valves, they do not constitute an "identifiable pressure bearing housing" as defined in PED Guideline 1/8. These styles must be installed into either ferrules or fittings to create a pressure bearing housing. Instead, they are classified as "components of pressure equipment" as defined in PED Guideline 1/8. As a result, these valves can be sold in the European Community and no CE Mark is required.In addition applications where the maximum allowed operating pressure is 0.5 bar (7.2 psi) or less, do not fall under the PED, regardless of the valve style.

Note

Bore of union must be equal to I.D. of schedule 40 pipe. Use ground joint unions with 45º seat only (union not included).Made in USA.

Specifications Body Material

Specifications Body Material Availability

Specifications Certifications

European Conformity (CE) Non-PED Statement | International Organization for Standardization (ISO 9001) Certified

Specifications Nominal Pipe Size

3/4 in

Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei

3000 psig

Specifications Note For Material

Listed above are the most common material selections. Please contact the factory for additional options.

Specifications Note For Standard Cracking Pressure

0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.

Specifications Seat Material

Specifications Size Code

Specifications Special Options

RT = Reverse Trim | T = FEP Encapsulated Spring

Specifications Spring Material

Specifications Standard Cracking Pressure

0.500 psi

Specifications Valve Style

Check-All® 3/4in UV Style Union Insert Check Valve
