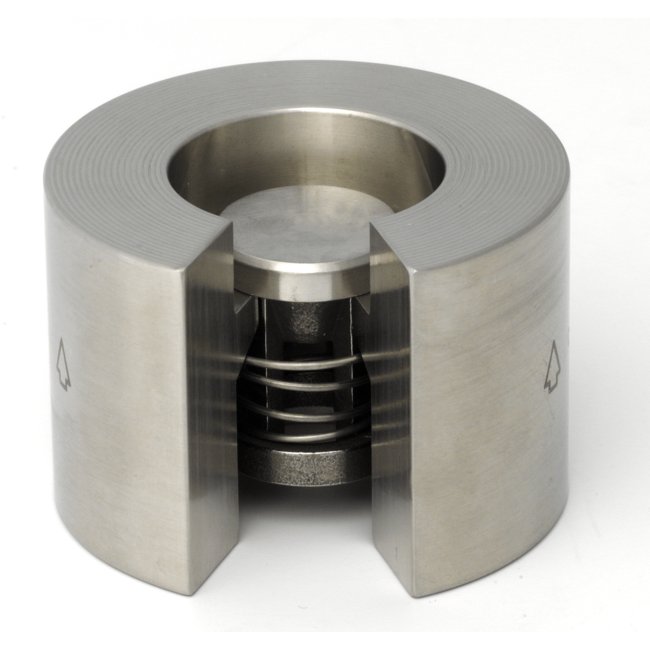

Check-All® 3/4in WV Style Wafer Insert Check Valve
Check-All® 3/4in WV Style Wafer Insert Check Valve
SKU:WVS-2a27b8
Durable 3/4in WV Style Wafer Insert Check Valve meeting ANSI standards, ideal for relief and vacuum applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Check-All® 3/4in WV Style Wafer Insert Check Valve
$149.99
Quantity: 1
Claim Your Seller Account
Check-All® 3/4in WV Style Wafer Insert Check Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check-All® 3/4in WV Style Wafer Insert Check Valve is a versatile valve designed for easy fitting between ANSI flanges. With a robust body material selection including 316 Stainless Steel and various seat material options, this valve offers reliable performance in different applications. Meeting ANSI Class 150 to 2500 standards, this valve is ideal for low-pressure relief and vacuum breaker functions. Certified under ISO 9001 and CE PED 2014/68/EU, this valve boasts quality and compliance for various institutional and industry requirements, making it a top choice for durability and performance.
Product Specifications
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
3/4 in
Specifications Non Shock Pressure Rating
American National Standards Institute (ANSI) Class 150 to 2500
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
1500 psig
Specifications Non Shock Pressure Rating For Brass Valves
American National Standards Institute (ANSI) Class 150 - 300
Specifications Note For Standard Cracking Pressure
0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
F
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.500 psi
Specifications Valve Style
WV
