Check-All® 3" TC Style Sanitary Insert Check Valve
Check-All® 3" TC Style Sanitary Insert Check Valve
SKU:CBA-0e4e94
Reliable Check-All® 3" TC Style Insert Valve for sanitary piping systems. Compact design, standard 0.125 psi cracking pressure, versatile material options.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Check-All® 3" TC Style Sanitary Insert Check Valve
$129.99
Quantity: 1
Claim Your Seller Account
Check-All® 3" TC Style Sanitary Insert Check Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

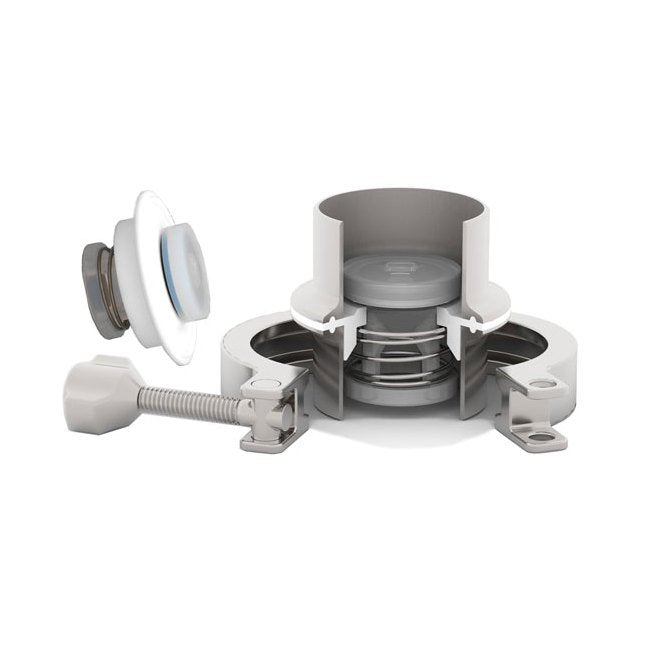

The Check-All® 3" TC Style Sanitary Insert Check Valve is a top-tier choice for sanitary piping systems, featuring a compact fluoropolymer design with a standard cracking pressure of 0.125 psi. This valve effortlessly fits into grooved-end clamp-type fittings and eliminates the need for extra space, making it a versatile and cost-effective solution. With various material options and spring settings for low pressure relief or vacuum breaking, this valve offers exceptional reliability and performance for both new installations and retrofit projects.
Product Specifications
Additional Information
Two different types of Sanitary Insert Valves are available. They are distinguished by the following designations in their part numbers.TC - Designates Tri-Clamp® fittings manufactured by Alfa Laval Inc., as well as Cherry-Burrell S-Line Series of fittings. CB - Designates the Cherry-Burrell Q-Line Series of fittings.PED Compliance Statement: Due to the unique "insert" design of our 3S, SC, CB, TC, SI, & UV, style check valves, they do not constitute an "identifiable pressure bearing housing" as defined in PED Guideline 1/8. These styles must be installed into either ferrules or fittings to create a pressure bearing housing. Instead, they are classified as “components of pressure equipment” as defined in PED Guideline 1/8. As a result, these valves can be sold in the European Community and no CE Mark is required. In addition applications where the maximum allowed operating pressure is 0.5 bar (7.2 psi) or less, do not fall under the PED, regardless of the valve style.
Note
Sanitary Insert Valve types TC and CB are not interchangeable!USP Class VI O-rings can be supplied with certification.Made in USA.
Specifications Body Material
Polytetrafluoroethylene (PTFE) = TF
Specifications Certifications
European Conformity (CE) Non-PED Statement | International Organization for Standardization (ISO 9001) Certified
Specifications Line Size
3 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
20 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.125 psi springs are not recommended for installations with flow vertical down.
Specifications Seat And Outer Seals Material
FDA Aflas® = FA | FDA Buna = FB | FDA Ethylene Propylene Diene Monomer (EPDM) = FE | FDA Fluoro-Elastomer (FKM) = FV | FDA Perfluoroelastomer = FK | Plastic to Plastic = MT (No O-ring). | USP Class VI Aflas® = UA | USP Class VI Ethylene Propylene Diene Monomer (EPDM) = UE | USP Class VI Fluoro-Elastomer (FKM) = UV | USP Class VI Silicone = US
Specifications Size Code
M
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.125 psi
Specifications Valve Style
TC
