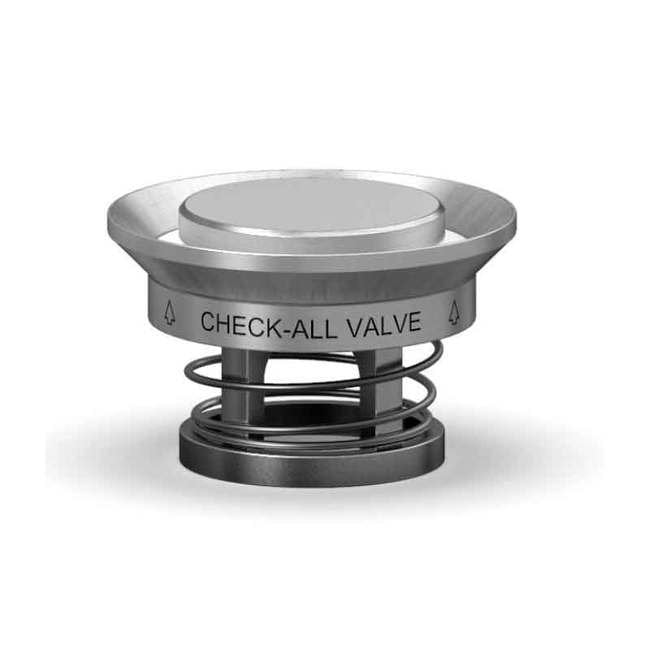

Check-All® UV Style Union Insert Check Valve - 3/4 in, 3.50 psi Standard Cracking Pressure

Name: Check-All® UV Style Union Insert Check Valve - 3/4 in, 3.50 psi Standard Cracking Pressure
Brand: Check-All Valve Mfg. Co.
SKU: UVS-14cfdb
Price: 59.99 USD
Availability: OutOfStock

SKU:UVS-14cfdb

Reliable Check-All® UV Style Union Insert Check Valve - Easy to install, durable construction, versatile applications.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Check-All® UV Style Union Insert Check Valve is a reliable threaded pipe check valve designed for easy installation in both horizontal and vertical positions. Constructed with durable 316 Stainless Steel body material and a variety of seat material options available, this valve ensures excellent performance and longevity. With a standard cracking pressure of 3.50 psi, it functions as a low-pressure relief valve or vacuum breaker. Each valve includes a metal tag for quick identification, making it ideal for diverse applications. PED compliant and with a non-shock pressure rating of 3000 psig, this valve is a dependable choice for various industrial settings.

Product Specifications

Additional Information

The valve works equally well in either a horizontal or vertical position with proper spring selection. Each Union Insert valve is furnished with a metal tag, which is quickly attached to the union when the valve is installed. This provides a permanent visual notification that the union contains a check valve. The UV valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings.PED Compliance Statement: Due to the unique "insert" design of our 3S, SC, CB, TC, SI, & UV, style check valves, they do not constitute an "identifiable pressure bearing housing" as defined in PED Guideline 1/8. These styles must be installed into either ferrules or fittings to create a pressure bearing housing. Instead, they are classified as "components of pressure equipment" as defined in PED Guideline 1/8. As a result, these valves can be sold in the European Community and no CE Mark is required.In addition applications where the maximum allowed operating pressure is 0.5 bar (7.2 psi) or less, do not fall under the PED, regardless of the valve style.

Note

Bore of union must be equal to I.D. of schedule 40 pipe. Use ground joint unions with 45º seat only (union not included).Made in USA.

Specifications Body Material

Specifications Body Material Availability

Specifications Certifications

European Conformity (CE) Non-PED Statement | International Organization for Standardization (ISO 9001) Certified

Specifications Nominal Pipe Size

3/4 in

Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei

3000 psig

Specifications Note For Material

Listed above are the most common material selections. Please contact the factory for additional options.

Specifications Seat Material

Specifications Size Code

Specifications Special Options

RT = Reverse Trim | T = FEP Encapsulated Spring

Specifications Spring Material

Specifications Standard Cracking Pressure

3.50 psi

Specifications Valve Style

Check-All® UV Style Union Insert Check Valve - 3/4 in, 3.50 psi Standard Cracking Pressure
