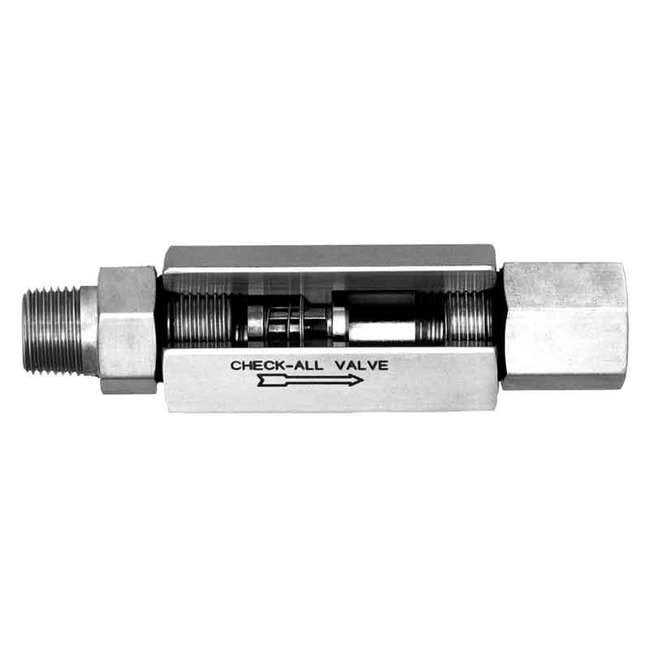

Check-All 1/8in M8 Mini-Check Valve-316SS-1.50psi
Check-All 1/8in M8 Mini-Check Valve-316SS-1.50psi
SKU:M1T-2a50e9
Versatile Check-All M8 Mini-Check Valve with 1.50psi cracking pressure in 1/8in size for precise control and reliable performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Check-All 1/8in M8 Mini-Check Valve-316SS-1.50psi
$49.99
Quantity: 1
Claim Your Seller Account
Check-All 1/8in M8 Mini-Check Valve-316SS-1.50psi
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check-All M8 Mini-Check Valve in 1/8-inch size features a standard cracking pressure of 1.50 psi, ideal for low-pressure relief and vacuum applications. Constructed with 316 stainless steel, it offers durability and corrosion resistance. The versatile three-piece design allows for various end fittings and configurations, making it adaptable to a wide range of applications. With certifications including CE and ISO 9001, this valve ensures quality and compliance with international standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note
When ordering styles M5 through M8 be sure to specify whether compression (-C) or 37º flare (-F).Made in USA.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.
Specifications Body Material
316 Stainless Steel = SS | Brass = BR | Carbon Steel = CS
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe And Tube Size
1/8 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
5000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Non Shock Pressure Rating At 100 Degree
Consult factory for P-T rating above 100 ºF.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
A
Specifications Special Options
C = Compression Tube (M5 - M8 only) | F = Flared Tube (M5 - M8 only) | O = Outer O-Ring Seals Same as Seat | T = FEP Encapsulated Spring
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Standard End Fitting O Ring Material
Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Polytetrafluoroethylene (PTFE) = TF

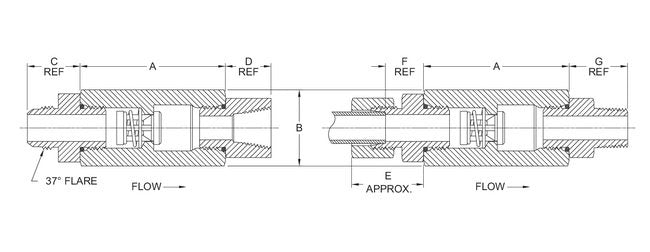

Specifications Valve Style
M8 - Tubing Inlet - Female Pipe Outlet
