Check-All M2 Mini-Check Valve 3/8" Size, 1.50 psi Standard Cracking Pressure

Name: Check-All M2 Mini-Check Valve 3/8" Size, 1.50 psi Standard Cracking Pressure
Brand: Check-All Valve Mfg. Co.
SKU: M1T-fe5151
Price: 49.99 USD
Availability: OutOfStock

SKU:M1T-fe5151

High-performance 3/8" Check Valve with 1.50 psi cracking pressure. Durable, versatile, and CE PED & ISO 9001 compliant.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

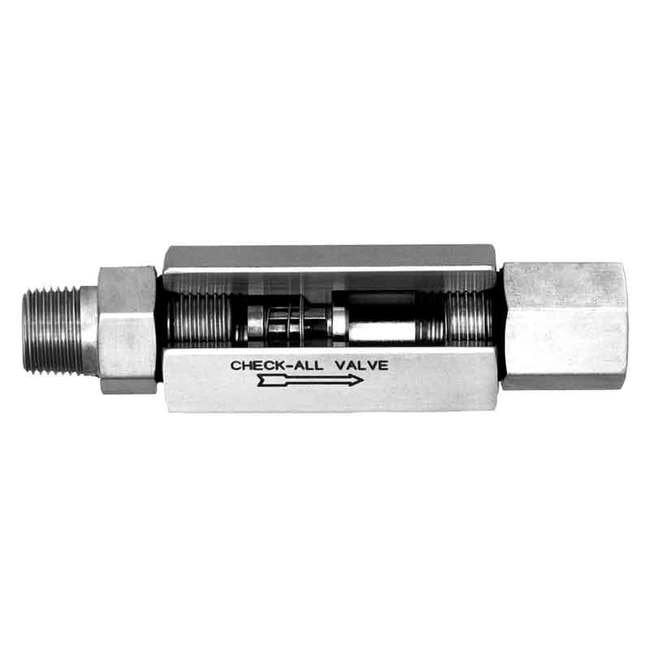

The Check-All M2 Mini-Check Valve offers exceptional performance with its 3/8" size and 1.50 psi standard cracking pressure. Crafted with high-quality 316 Stainless Steel, this valve guarantees durability and reliability. Its versatile design allows for various end fitting combinations, making it suitable for a wide range of applications. With certifications like CE PED and ISO 9001 compliance, this valve ensures top-notch quality and adherence to international standards.

Product Specifications

Note

When ordering styles M5 through M8 be sure to specify whether compression (-C) or 37º flare (-F).Made in USA.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.

Specifications Body Material

316 Stainless Steel = SS | Brass = BR | Carbon Steel = CS

Specifications Certifications

European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified

Specifications Nominal Pipe And Tube Size

3/8 in

Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei

5000 psig

Specifications Note For Material

Listed above are the most common material selections. Please contact the factory for additional options.

Specifications Note For Non Shock Pressure Rating At 100 Degree

Consult factory for P-T rating above 100 ºF.

Specifications Seat Material

Specifications Size Code

Specifications Special Options

C = Compression Tube (M5 - M8 only) | F = Flared Tube (M5 - M8 only) | O = Outer O-Ring Seals Same as Seat | T = FEP Encapsulated Spring

Specifications Spring Material

Specifications Standard Cracking Pressure

1.50 psi

Specifications Standard End Fitting O Ring Material

Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Polytetrafluoroethylene (PTFE) = TF

Specifications Valve Style

M2 - Female Pipe Threads Both Ends

Check-All M2 Mini-Check Valve 3/8" Size, 1.50 psi Standard Cracking Pressure
