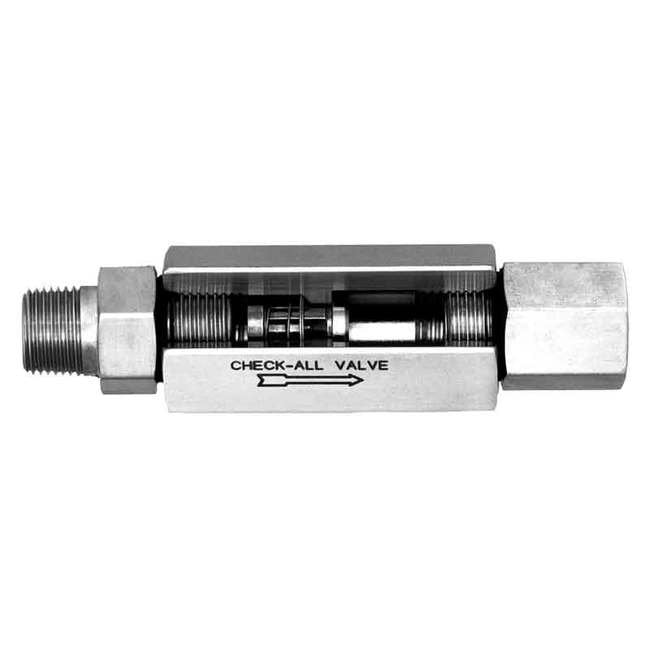

Check-All M5 Style Mini-Check Valve, 1/8" Size, 0.125 psi Cracking Pressure

Name: Check-All M5 Style Mini-Check Valve, 1/8" Size, 0.125 psi Cracking Pressure
Brand: Check-All Valve Mfg. Co.
SKU: M1T-e00406
Price: 39.99 USD
Availability: OutOfStock

SKU:M1T-e00406

Precision-engineered Check-All M5 Mini-Check Valve for minimal pressure drop and versatile adaptability.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Check-All M5 Style Mini-Check Valve is expertly crafted for minimal pressure drop and versatile adaptability, making it suitable for various applications. With 1/8 inch pipe threads and multiple end fitting options, this valve can be configured to meet specific needs. Designed with high-quality materials like 316 Stainless Steel and various seat options, it offers reliable performance. Featuring a standard cracking pressure of 0.125 psi and built-in options for low-pressure relief or vacuum breaking, this valve assures precision and functionality for industrial settings.

Product Specifications

Note

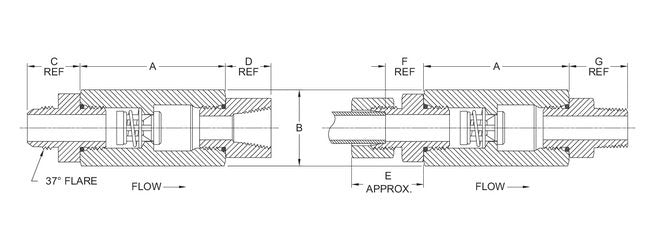

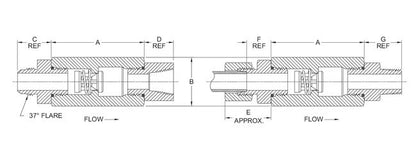

When ordering styles M5 through M8 be sure to specify whether compression (-C) or 37º flare (-F).Made in USA.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.

Specifications Body Material

316 Stainless Steel = SS | Brass = BR | Carbon Steel = CS

Specifications Certifications

European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified

Specifications Nominal Pipe And Tube Size

1/8 in

Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei

5000 psig

Specifications Note For Material

Listed above are the most common material selections. Please contact the factory for additional options.

Specifications Note For Non Shock Pressure Rating At 100 Degree

Consult factory for P-T rating above 100 ºF.

Specifications Note For Standard Cracking Pressure

0.125 psi springs are not recommended for installations with flow vertical down.

Specifications Seat Material

Specifications Size Code

Specifications Special Options

C = Compression Tube (M5 - M8 only) | F = Flared Tube (M5 - M8 only) | O = Outer O-Ring Seals Same as Seat | T = FEP Encapsulated Spring

Specifications Spring Material

Specifications Standard Cracking Pressure

0.125 psi

Specifications Standard End Fitting O Ring Material

Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Polytetrafluoroethylene (PTFE) = TF

Specifications Valve Style

M5 - Male Pipe Inlet - Tubing Outlet
