Check-All UV Style Union Insert Check Valve - 1-1/4" NPS, 0.500 psi Cracking Pressure

Name: Check-All UV Style Union Insert Check Valve - 1-1/4" NPS, 0.500 psi Cracking Pressure
Brand: Check-All Valve Mfg. Co.
SKU: UVS-aa486f
Price: 129.99 USD
Availability: OutOfStock

SKU:UVS-aa486f

Premium UV Style Union Insert Check Valve for threaded pipe systems, 1-1/4" NPS, 0.500 psi cracking pressure, CE and ISO 9001 certified.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

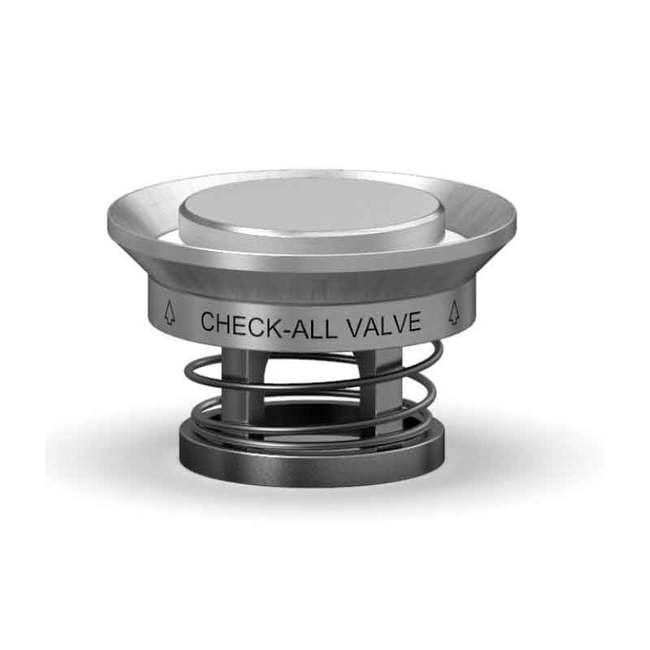

The Check-All UV Style Union Insert Check Valve is designed for easy installation in threaded pipe systems using standard ground joint unions. Made from high-quality materials such as 316 Stainless Steel and with a standard cracking pressure of 0.500 psi, this valve ensures reliable performance. It is versatile, suitable for horizontal or vertical positioning, and features a metal tag for quick identification. Moreover, it complies with European Conformity (CE) and ISO 9001 certifications, making it a trusted choice for institutional procurement needs.

Product Specifications

Additional Information

The valve works equally well in either a horizontal or vertical position with proper spring selection. Each Union Insert valve is furnished with a metal tag, which is quickly attached to the union when the valve is installed. This provides a permanent visual notification that the union contains a check valve. The UV valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings.PED Compliance Statement: Due to the unique "insert" design of our 3S, SC, CB, TC, SI, & UV, style check valves, they do not constitute an "identifiable pressure bearing housing" as defined in PED Guideline 1/8. These styles must be installed into either ferrules or fittings to create a pressure bearing housing. Instead, they are classified as "components of pressure equipment" as defined in PED Guideline 1/8. As a result, these valves can be sold in the European Community and no CE Mark is required.In addition applications where the maximum allowed operating pressure is 0.5 bar (7.2 psi) or less, do not fall under the PED, regardless of the valve style.

Note

Bore of union must be equal to I.D. of schedule 40 pipe. Use ground joint unions with 45º seat only (union not included).Made in USA.

Specifications Body Material

Specifications Body Material Availability

Specifications Certifications

European Conformity (CE) Non-PED Statement | International Organization for Standardization (ISO 9001) Certified

Specifications Nominal Pipe Size

1-1/4 in

Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei

3000 psig

Specifications Note For Material

Listed above are the most common material selections. Please contact the factory for additional options.

Specifications Note For Standard Cracking Pressure

0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.

Specifications Seat Material

Specifications Size Code

Specifications Special Options

RT = Reverse Trim | T = FEP Encapsulated Spring

Specifications Spring Material

Specifications Standard Cracking Pressure

0.500 psi

Specifications Valve Style

Check-All UV Style Union Insert Check Valve - 1-1/4" NPS, 0.500 psi Cracking Pressure
