Check Class 125 Bronze Valve
Check Class 125 Bronze Valve
SKU:VAL-3e0029
Premium Check Class 125 Bronze Valve with screw cap and integral seat for reliable fluid control.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Check Class 125 Bronze Valve
$89.99
Quantity: 1
Claim Your Seller Account
Check Class 125 Bronze Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check Class 125 Bronze Valve is a high-quality valve designed for reliability and durability. With a screw cap, integral seat, and Y-pattern swing type disc, this valve ensures smooth operation and precise control of fluid flow. Crafted from premium bronze material, it meets stringent industry standards and is built to withstand pressure and temperature variations. Endorsed by leading procurement authorities, this valve is an ideal choice for both consumer and institutional applications.
Product Specifications
Material List 0
No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)
Specifications Approx Net Wt
2.78
Specifications Carton Qty
18
Specifications Class
CYR

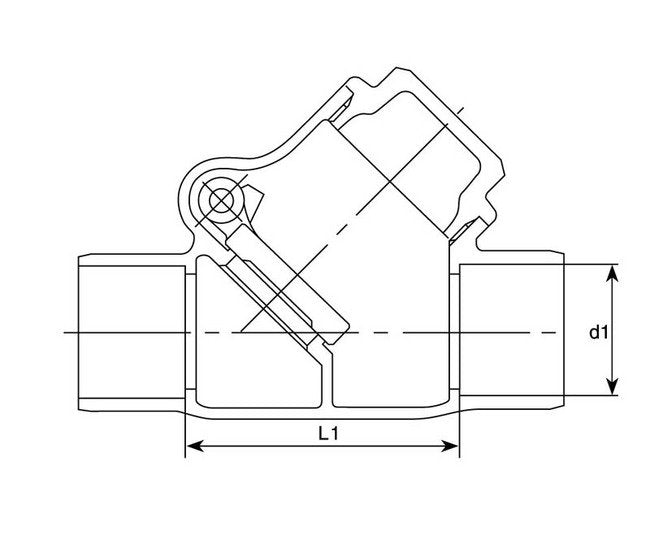

Specifications Dimension D1 Max
1.633
Specifications Dimension D1 Min
1.628
Specifications Dimension D2
1 1/2 inches
Specifications Dimension H
3.15
Specifications Dimension L
4.33
Specifications Dimension L1
3.21
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
125 PSI - Fluid to 406°F | 125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
