Check Class 125 Bronze Valve

Check Class 125 Bronze Valve

VAL-1dbea0

High-quality Check Class 125 Bronze Valve for reliable performance in diverse applications. ANSI & MSS compliant.

$149.99
$149.99
Sale

Initiate Order

Check Class 125 Bronze Valve

Check Class 125 Bronze Valve

$149.99

Quantity: 1

Claim Your Seller Account

Check Class 125 Bronze Valve

Check Class 125 Bronze Valve

$149.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Check Class 125 Bronze Valve is a high-quality valve suitable for a wide range of applications. Featuring a screw cap, integral seat, and Y-pattern swing type disc, this valve is engineered for durability and reliability. With a pressure rating of 125 PSI for fluids up to 406°F, saturated steam up to 353°F, and 200 PSI for non-shock cold water, oil, or gas, this valve ensures efficient performance under varying conditions. Its bronze construction and precise dimensions make it a dependable choice for demanding operations. Compliant with ANSI, MSS, and military standards, this valve meets stringent quality requirements for institutional and government procurement.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

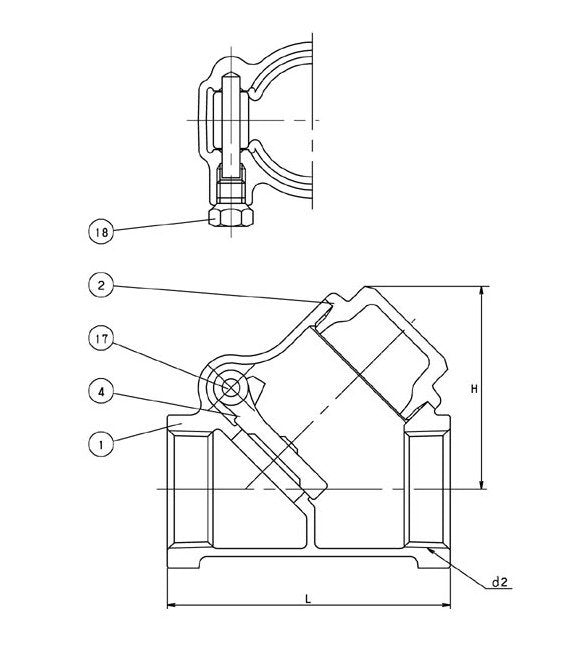

Material List 0
No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)
Specifications Approx Net Wt
11.00
Specifications Carton Qty
4
Specifications Class
AKYR
Specifications Dimension D1 Max
3.133
Specifications Dimension D1 Min
3.128
Specifications Dimension D2
3 inches
Specifications Dimension H
5.16
Specifications Dimension L
7.24
Specifications Dimension L1
5.42
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
125 PSI - Fluid to 406°F | 125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
