Check Class 125 Bronze Valve
Check Class 125 Bronze Valve
SKU:VAL-f9c2fe
Reliable Check Class 125 Bronze Valve for high-pressure hose bed applications. Durable bronze construction with Y-Pattern swing type disc.
Regular price
$64.99
Regular price
Sale price
$64.99
Unit price
per
Initiate Order
Check Class 125 Bronze Valve
$64.99
Quantity: 1
Claim Your Seller Account
Check Class 125 Bronze Valve
$64.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check Class 125 Bronze Valve is designed for durability and reliability in high-pressure applications. Featuring a Y-Pattern swing type disc and integral seat, this valve ensures secure shut-off and minimal pressure drop. With a pressure rating of 125 PSI for fluid and saturated steam, as well as 200 PSI for cold water, oil, or gas, it meets stringent industry standards. Crafted from premium bronze materials and with precise dimensions, this valve is a top choice for hose bed applications.
Product Specifications
Material List 0
No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)
Specifications Approx Net Wt
4.58
Specifications Carton Qty
12
Specifications Class
CYR

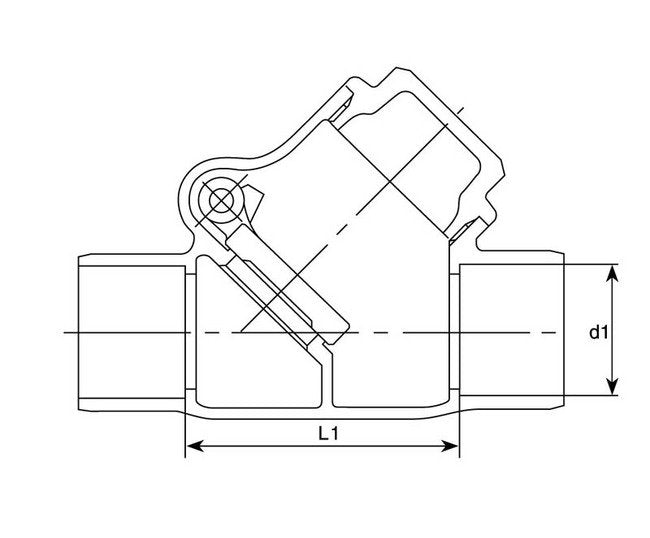

Specifications Dimension D1 Max
2.133
Specifications Dimension D1 Min
2.128
Specifications Dimension D2
2 inches
Specifications Dimension H
3.74
Specifications Dimension L
5.04
Specifications Dimension L1
4.02
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
125 PSI - Fluid to 406°F | 125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
