Check Class 125 Bronze Valve
Check Class 125 Bronze Valve
SKU:VAL-49fe29
Premium bronze valve for hose beds with screw cap and Y-pattern swing type disc. Meets Class AKYR standards, pressure/temperature range up to 125 PSI - 406°F, ensuring reliable fluid control.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Check Class 125 Bronze Valve
$49.99
Quantity: 1
Claim Your Seller Account
Check Class 125 Bronze Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check Class 125 Bronze Valve is a premium quality valve designed for hose beds applications. This valve features a screw cap, integral seat, and a Y-pattern swing type disc for efficient fluid control. Crafted from durable bronze material, it meets Class AKYR specifications with threaded end size, operating at a pressure/temperature range of 125 PSI to 406°F. With dimensions of 1/2 inches (d2), 1.57 inches (H), 2.20 inches (L), and weighing only 0.52 lbs, this valve ensures reliable performance and longevity. It complies with End to End KITZ standards, with threaded ends meeting ANSI B1.20.1 and design conforming to MSS SP-80 Type 3 and military requirements.
Product Specifications
Material List 0

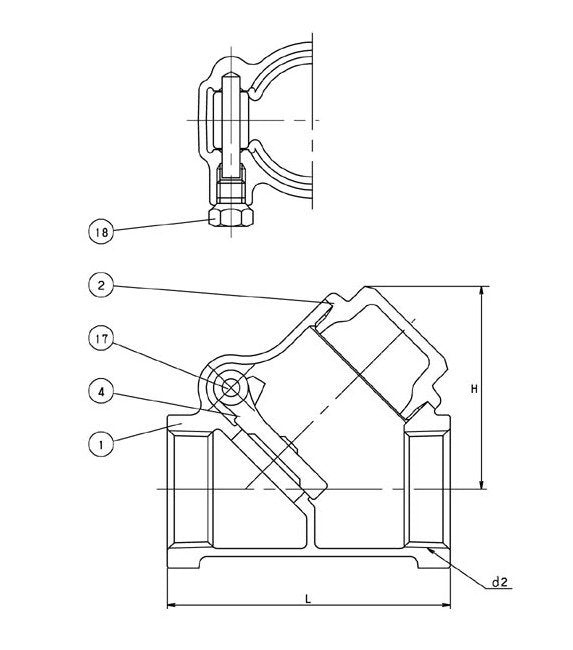

No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)
Specifications Approx Net Wt
0.52
Specifications Carton Qty
96
Specifications Class
AKYR
Specifications Dimension D1 Max
0.631
Specifications Dimension D1 Min
0.627
Specifications Dimension D2
1/2 inches
Specifications Dimension H
1.57
Specifications Dimension L
2.20
Specifications Dimension L1
1.64
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
125 PSI - Fluid to 406°F | 125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
