Check Class 125 Bronze Valve with Y-Pattern Swing Disc

Name: Check Class 125 Bronze Valve with Y-Pattern Swing Disc
Brand: Caylor Industrial Sales, Inc.
SKU: VAL-45f248
Price: 49.99 USD
Availability: OutOfStock

SKU:VAL-45f248

High-performance Check Class 125 Bronze Valve with Y-Pattern Swing Disc for precise flow control in hose bed applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Check Class 125 Bronze Valve is expertly designed with a Screw Cap and Integral Seat for reliable performance. Featuring a Y-Pattern Swing Type Disc, this valve ensures smooth flow control and high durability. Crafted from quality materials such as Cast Bronze and Forged Brass, it meets stringent industry standards like MSS SP-80 and ANSI B16.18, making it ideal for hose bed applications. With a maximum pressure of 125 PSI and a temperature range up to 406°F, this valve is a top choice for both consumer and institutional buyers seeking precision and reliability.

Product Specifications

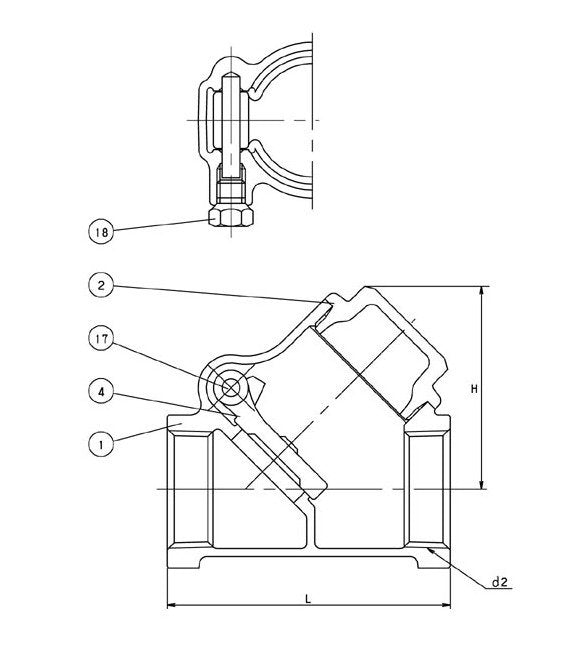

Material List 0

No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)

Specifications Approx Net Wt

1.33

Specifications Carton Qty

Specifications Class

AKYR

Specifications Dimension D1 Max

1.132

Specifications Dimension D1 Min

1.128

Specifications Dimension D2

1 inches

Specifications Dimension H

2.28

Specifications Dimension L

3.15

Specifications Dimension L1

2.31

Specifications End Size

Threaded

Specifications Material

Bronze

Specifications Pressuretemperature

125 PSI - Fluid to 406Â°F | 125 PSI - Saturated Steam to 353Â°F | 200 PSI - Non-Shock Cold Water, Oil or Gas

Standard 0

End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
