Check IB940 Horizontal Swing - Bronze Valve
Check IB940 Horizontal Swing - Bronze Valve
SKU:VAL-f91705
High-quality Check IB940 Horizontal Swing Bronze Valve with threaded ends, suitable for various applications. Conforms to MSS SP-80 standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Check IB940 Horizontal Swing - Bronze Valve
$89.99
Quantity: 1
Claim Your Seller Account
Check IB940 Horizontal Swing - Bronze Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB940 Horizontal Swing Valve in bronze is a high-quality valve suitable for various applications. With a working pressure of 125 lb. SWP and 200 lb. WOG (Non-Shock), this valve ensures reliable performance. It features threaded ends and conforms to MSS SP-80 Type 3, Class 125 standards. The valve is crafted from durable bronze material and includes a brass disc, making it a dependable choice for industrial and institutional use.
Product Specifications
Material List 0

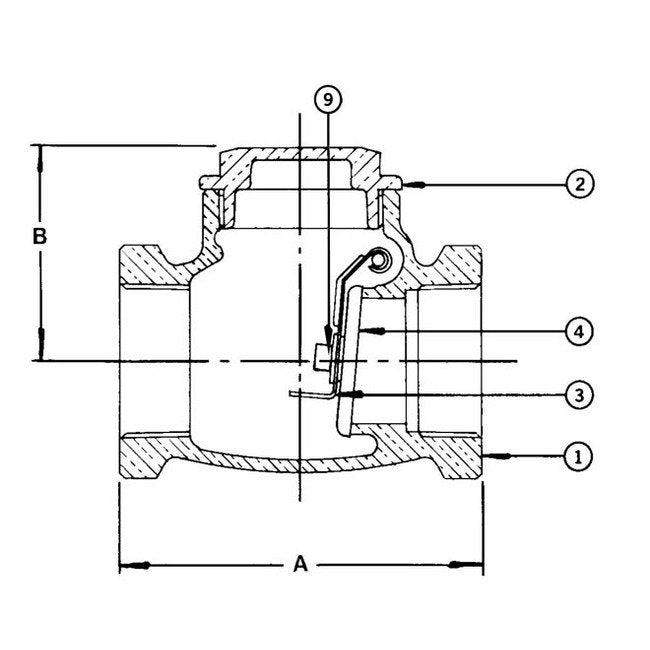

No. Part Material Specification 1 Body Bronze ASTM B 62 2 Cap Bronze ASTM B 62 3 Lever St. Steel Commercial1/4" to 2" Incl. Bronze ASTM B 622 1/2" and 3" 4 Disc Brass ASTM B 161/4" to 3/4" Incl. ASTM B 621" to 3" Incl. 5 Pin St. Steel Commercial 6 Plug (not shown) Brass ASTM B 16 7 Washer Bronze Commercial 8 Disc Nut Bronze Commercial 9 Retaining Ring St. Steel Commercial Washer, Disc Nut used on 2 1/2" and 3" sizes only
Specifications Dimension A
53.98 mm
Specifications Dimension B
36.53 mm
Specifications Material
Bronze
Specifications Size
9.53 mm
