Check IB940 Horizontal Swing Valve - Bronze, 31.75mm
Check IB940 Horizontal Swing Valve - Bronze, 31.75mm
SKU:VAL-003507
Reliable Check IB940 Horizontal Swing Valve in Bronze, ideal for general service applications, with threaded ends. Conforms to MSS SP-80 standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Check IB940 Horizontal Swing Valve - Bronze, 31.75mm
$59.99
Quantity: 1
Claim Your Seller Account
Check IB940 Horizontal Swing Valve - Bronze, 31.75mm
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB940 Horizontal Swing Valve in Bronze is a top-of-the-line solution designed for general service applications. With a 125 lb. SWP and 200 lb. WOG (Non-Shock) rating, this valve ensures reliable performance. Crafted with high-quality Bronze material, conforming to MSS SP-80 Type 3 Class 125 standards, this valve guarantees durability and efficiency. Threaded ends make installation easy and secure. With precise dimensions of 90.50mm (A) and 53.98mm (B), this valve is built to meet the stringent requirements of institutional and government buyers.
Product Specifications
Material List 0

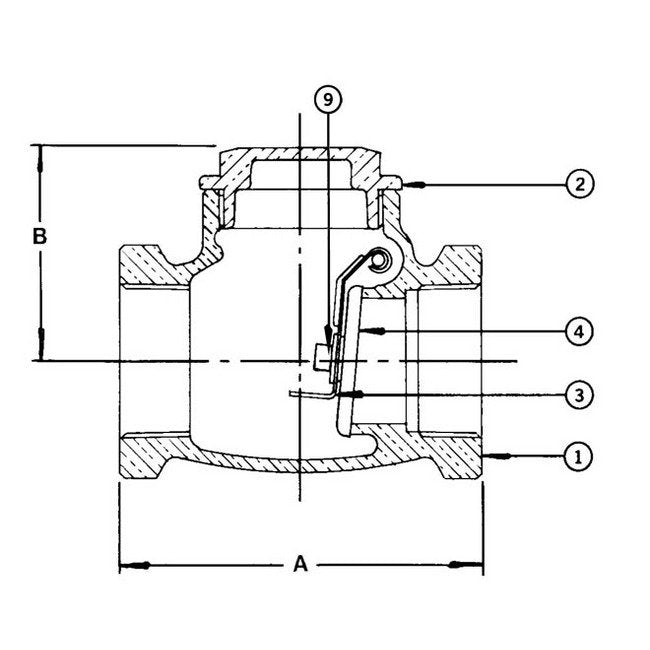

No. Part Material Specification 1 Body Bronze ASTM B 62 2 Cap Bronze ASTM B 62 3 Lever St. Steel Commercial1/4" to 2" Incl. Bronze ASTM B 622 1/2" and 3" 4 Disc Brass ASTM B 161/4" to 3/4" Incl. ASTM B 621" to 3" Incl. 5 Pin St. Steel Commercial 6 Plug (not shown) Brass ASTM B 16 7 Washer Bronze Commercial 8 Disc Nut Bronze Commercial 9 Retaining Ring St. Steel Commercial Washer, Disc Nut used on 2 1/2" and 3" sizes only
Specifications Dimension A
90.50 mm
Specifications Dimension B
53.98 mm
Specifications Material
Bronze
Specifications Size
31.75 mm
