Check IB940 Horizontal Swing Valve - Bronze, 38.10 mm
Check IB940 Horizontal Swing Valve - Bronze, 38.10 mm
SKU:VAL-823bdd
Durable Check Valve in Bronze with 125 lb. SWP & 200 lb. WOG rating, meets MSS SP-80 Standards
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Check IB940 Horizontal Swing Valve - Bronze, 38.10 mm
$59.99
Quantity: 1
Claim Your Seller Account
Check IB940 Horizontal Swing Valve - Bronze, 38.10 mm
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB940 Horizontal Swing Valve in Bronze is designed for reliable performance in both consumer and institutional settings. With a 125 lb. SWP and 200 lb. WOG rating, this valve ensures robust performance. Featuring a bronze body, cap, and lever, with a brass disc and stainless steel components, it adheres to high-quality standards like ASTM B62 and ASTM B16. With threaded ends and conforming to MSS SP-80 Type 3, Class 125, this valve offers exceptional durability and ease of installation. Trust the Check IB940 for superior valve solutions in check valve applications.
Product Specifications
Material List 0

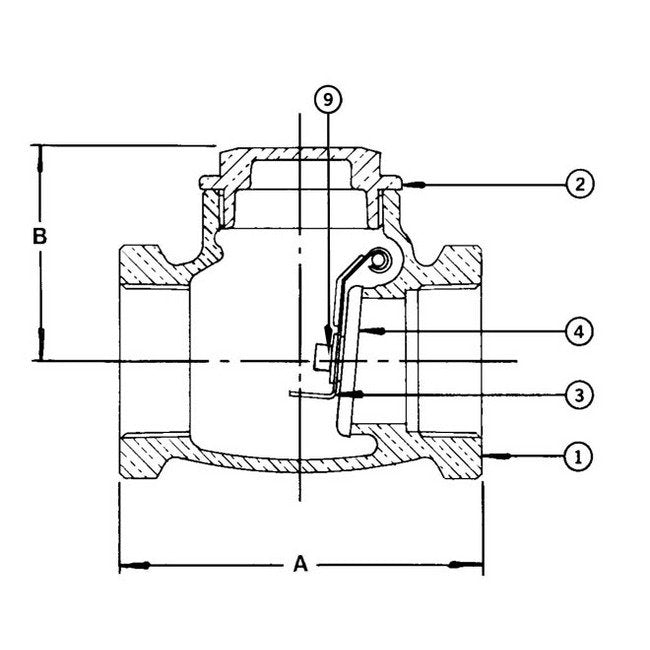

No. Part Material Specification 1 Body Bronze ASTM B 62 2 Cap Bronze ASTM B 62 3 Lever St. Steel Commercial1/4" to 2" Incl. Bronze ASTM B 622 1/2" and 3" 4 Disc Brass ASTM B 161/4" to 3/4" Incl. ASTM B 621" to 3" Incl. 5 Pin St. Steel Commercial 6 Plug (not shown) Brass ASTM B 16 7 Washer Bronze Commercial 8 Disc Nut Bronze Commercial 9 Retaining Ring St. Steel Commercial Washer, Disc Nut used on 2 1/2" and 3" sizes only
Specifications Dimension A
101.60 mm
Specifications Dimension B
60.33 mm
Specifications Material
Bronze
Specifications Size
38.10 mm
