Check IB940 Horizontal Swing Valve - Bronze, MSS SP-80 Class 125
Check IB940 Horizontal Swing Valve - Bronze, MSS SP-80 Class 125
SKU:VAL-507d93
Durable Check IB940 Horizontal Swing Valve in Bronze, MSS SP-80 Class 125, for reliable performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Check IB940 Horizontal Swing Valve - Bronze, MSS SP-80 Class 125
$89.99
Quantity: 1
Claim Your Seller Account
Check IB940 Horizontal Swing Valve - Bronze, MSS SP-80 Class 125
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB940 Horizontal Swing Valve in Bronze is designed for durability and reliability in various applications. With 125 lb. SWP and 200 lb. WOG (Non-Shock) ratings, this valve ensures efficient performance. Made from high-quality bronze material, it features threaded ends for easy installation. This valve conforms to MSS SP-80 Type 3, Class 125 standards, guaranteeing compliance and superior functionality for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Material List 0

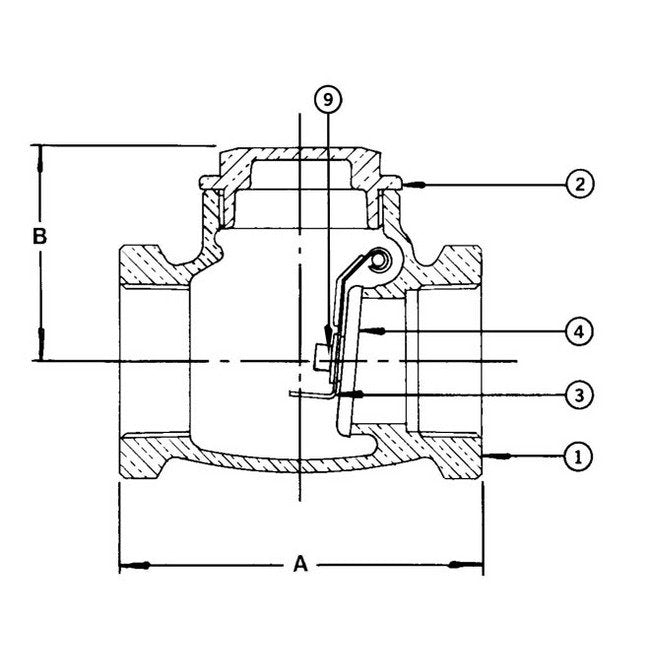

No. Part Material Specification 1 Body Bronze ASTM B 62 2 Cap Bronze ASTM B 62 3 Lever St. Steel Commercial1/4" to 2" Incl. Bronze ASTM B 622 1/2" and 3" 4 Disc Brass ASTM B 161/4" to 3/4" Incl. ASTM B 621" to 3" Incl. 5 Pin St. Steel Commercial 6 Plug (not shown) Brass ASTM B 16 7 Washer Bronze Commercial 8 Disc Nut Bronze Commercial 9 Retaining Ring St. Steel Commercial Washer, Disc Nut used on 2 1/2" and 3" sizes only
Specifications Dimension A
130.18 mm
Specifications Dimension B
207.98 mm
Specifications Material
Bronze
Specifications Size
50.80 mm
