Check IB940 Horizontal Swing Valve - Bronze, MSS SP-80 Type 3 Class 125
Check IB940 Horizontal Swing Valve - Bronze, MSS SP-80 Type 3 Class 125
SKU:VAL-d68867
High-performance Check IB940 Horizontal Swing Valve in Bronze, meeting MSS SP-80 standards. Ensures reliability and durability.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Check IB940 Horizontal Swing Valve - Bronze, MSS SP-80 Type 3 Class 125
$89.99
Quantity: 1
Claim Your Seller Account
Check IB940 Horizontal Swing Valve - Bronze, MSS SP-80 Type 3 Class 125
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB940 Horizontal Swing Valve in Bronze is designed for high performance with a 125 lb. SWP and 200 lb. WOG (Non-Shock) rating. Featuring threaded ends for easy installation, this valve conforms to MSS SP-80 standards, Type 3, Class 125. Crafted with precision, it includes a body, cap, lever, disc, pin, plug, washer, disc nut, and retaining ring made from high-quality materials like Bronze, Brass, and Stainless Steel. With dimensions of 19.05 mm (Size), 66.68 mm (Dimension - A), and 42.88 mm (Dimension - B), this valve ensures efficiency and durability in various applications.
Product Specifications
Material List 0

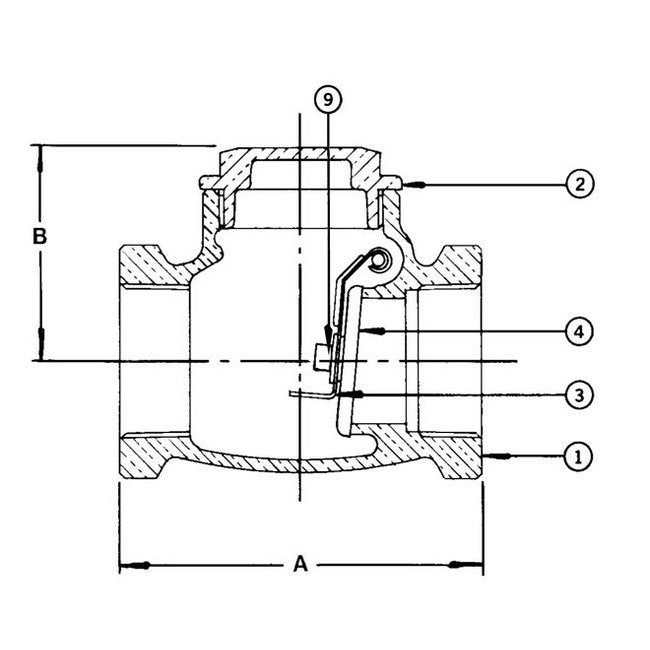

No. Part Material Specification 1 Body Bronze ASTM B 62 2 Cap Bronze ASTM B 62 3 Lever St. Steel Commercial1/4" to 2" Incl. Bronze ASTM B 622 1/2" and 3" 4 Disc Brass ASTM B 161/4" to 3/4" Incl. ASTM B 621" to 3" Incl. 5 Pin St. Steel Commercial 6 Plug (not shown) Brass ASTM B 16 7 Washer Bronze Commercial 8 Disc Nut Bronze Commercial 9 Retaining Ring St. Steel Commercial Washer, Disc Nut used on 2 1/2" and 3" sizes only
Specifications Dimension A
66.68 mm
Specifications Dimension B
42.88 mm
Specifications Material
Bronze
Specifications Size
19.05 mm
