Check IB940 Horizontal Swing Valve - Bronze, Threaded Ends
Check IB940 Horizontal Swing Valve - Bronze, Threaded Ends
SKU:VAL-4fa2fe
Durable Check IB940 Horizontal Swing Valve in Bronze for reliable general service applications. Conforms to MSS SP-80 standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Check IB940 Horizontal Swing Valve - Bronze, Threaded Ends
$89.99
Quantity: 1
Claim Your Seller Account
Check IB940 Horizontal Swing Valve - Bronze, Threaded Ends
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB940 Horizontal Swing Valve in Bronze is a reliable solution designed for 125 lb. SWP and 200 lb. WOG applications in general service settings. With a bronze disc and threaded ends, this valve conforms to MSS SP-80 standards, specifically Type 3, Class 125. Its sturdy construction includes a body and cap made of Bronze ASTM B62, a brass disc (ASTM B16), and a stainless steel lever and pin for durability and longevity. The valve also features a plug, washer, disc nut, and retaining ring to ensure secure operation across different sizes, meeting the requirements of institutional and government buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Material List 0

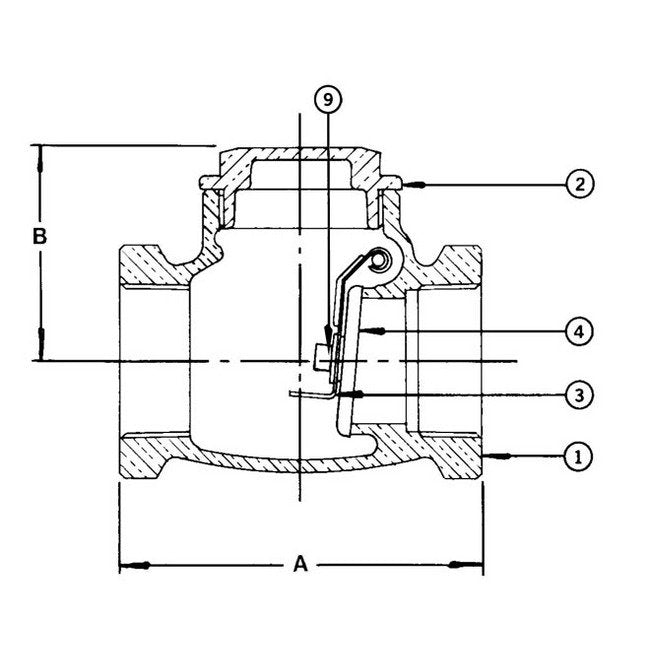

No. Part Material Specification 1 Body Bronze ASTM B 62 2 Cap Bronze ASTM B 62 3 Lever St. Steel Commercial1/4" to 2" Incl. Bronze ASTM B 622 1/2" and 3" 4 Disc Brass ASTM B 161/4" to 3/4" Incl. ASTM B 621" to 3" Incl. 5 Pin St. Steel Commercial 6 Plug (not shown) Brass ASTM B 16 7 Washer Bronze Commercial 8 Disc Nut Bronze Commercial 9 Retaining Ring St. Steel Commercial Washer, Disc Nut used on 2 1/2" and 3" sizes only
Specifications Dimension A
174.63 mm
Specifications Dimension B
106.38 mm
Specifications Material
Bronze
Specifications Size
76.20 mm
