Check IB940 Horizontal Swing Valve - Bronze, Threaded Ends
Check IB940 Horizontal Swing Valve - Bronze, Threaded Ends
SKU:VAL-03a826
Durable Check IB940 Horizontal Swing Valve in Bronze for 125 lb. SWP & 200 lb. WOG applications. Conforms to MSS SP-80 standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Check IB940 Horizontal Swing Valve - Bronze, Threaded Ends
$59.99
Quantity: 1
Claim Your Seller Account
Check IB940 Horizontal Swing Valve - Bronze, Threaded Ends
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB940 Horizontal Swing Valve in Bronze is designed for 125 lb. SWP and 200 lb. WOG (Non-Shock) applications. Its general service bronze disc and conforming to MSS SP-80 Type 3, Class 125, ensure reliable performance. With specific dimensions and materials like Bronze, Brass, and Stainless Steel, this valve guarantees durability and efficiency in various settings.
Product Specifications
Material List 0

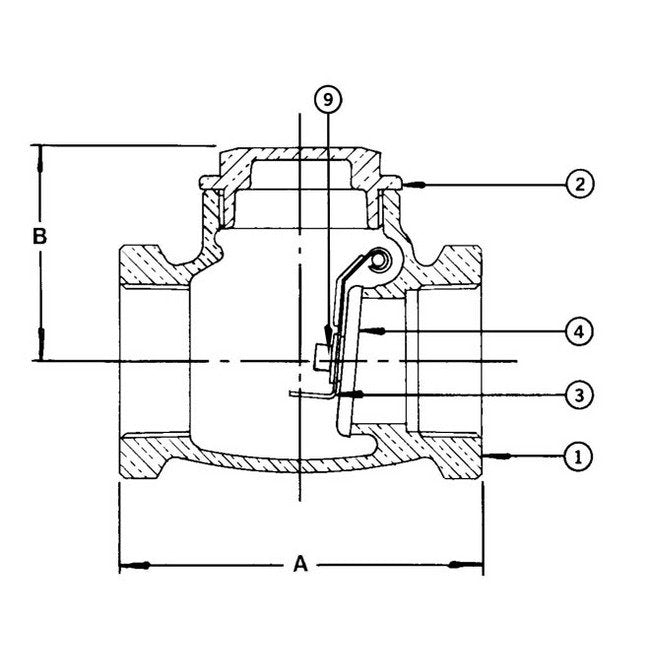

No. Part Material Specification 1 Body Bronze ASTM B 62 2 Cap Bronze ASTM B 62 3 Lever St. Steel Commercial1/4" to 2" Incl. Bronze ASTM B 622 1/2" and 3" 4 Disc Brass ASTM B 161/4" to 3/4" Incl. ASTM B 621" to 3" Incl. 5 Pin St. Steel Commercial 6 Plug (not shown) Brass ASTM B 16 7 Washer Bronze Commercial 8 Disc Nut Bronze Commercial 9 Retaining Ring St. Steel Commercial Washer, Disc Nut used on 2 1/2" and 3" sizes only
Specifications Dimension A
82.55 mm
Specifications Dimension B
50.80 mm
Specifications Material
Bronze
Specifications Size
25.40 mm
