Check IB944 Bronze Horizontal Swing Valve
Check IB944 Bronze Horizontal Swing Valve
SKU:VAL-b90653
Reliable Check IB944 Bronze Horizontal Swing Valve for high-pressure applications. Conforms to MSS SP-80 Type 3 Class 200 standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Check IB944 Bronze Horizontal Swing Valve
$59.99
Quantity: 1
Claim Your Seller Account
Check IB944 Bronze Horizontal Swing Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB944 Bronze Horizontal Swing Valve is designed for high-pressure applications, with a working pressure (SWP) of 200 lb and a maximum temperature of 425°F. This valve features a durable bronze construction, Y-Pattern design, and threaded ends for easy installation. Meeting MSS SP-80 Type 3 Class 200 standards, this valve ensures reliable performance and longevity in industrial settings. With precise dimensions (38.10mm Size, 130.18mm Dimension A, 84.14mm Dimension B), this valve guarantees efficient flow control and leak prevention. Upgrade to the Check IB944 for robust, high-quality valve solutions.
Product Specifications

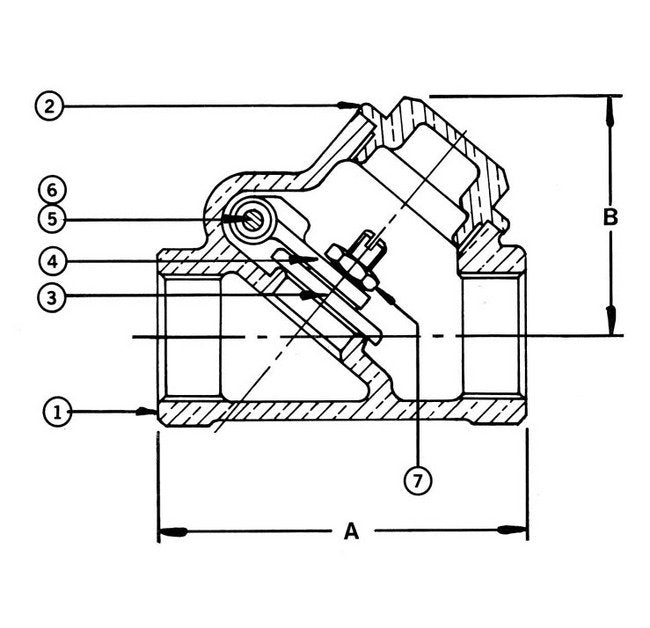

Material List 0
No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
130.18 mm
Specifications Dimension B
84.14 mm
Specifications Material
Bronze
Specifications Size
38.10 mm
